C&K

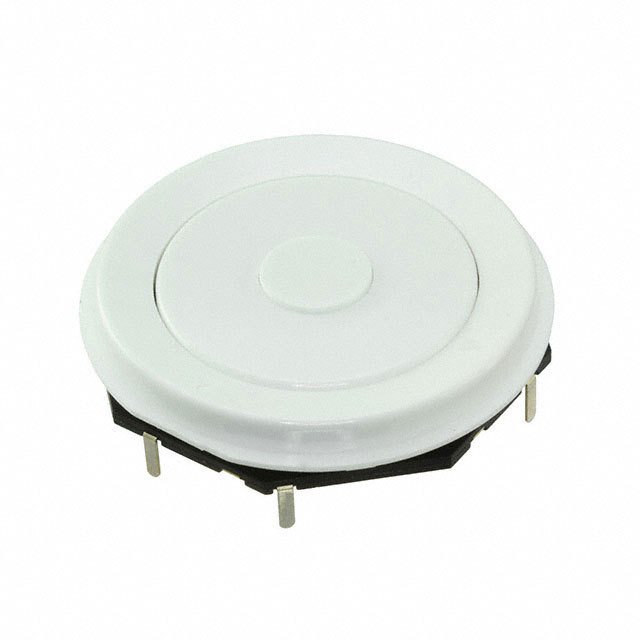

| Part Number | TSWB3NC LFS | Manufacturer | C&K |
|---|---|---|---|
| Description | SWITCH NAVIGATION SCROLL 1MA 10V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5996 pcs | Data sheet | 1.TSWB3NC LFS.pdf2.TSWB3NC LFS.pdf |
| Voltage Rating - DC | 10V | Voltage - Supply | - |
| Type | Navigation Switch, 2 - Axis | Termination Style | PC Pin |
| Switch Function | 360° Rotational, 4-Way Directional, Center Select | Series | TSW |
| Panel Cutout Dimensions | - | Output | Digital (Mechanical Switch) |
| Other Names | *TSWB3NC LFS CKN10307 TSWB3NCLFS |
Operating Temperature | 0°C ~ 40°C |
| Operating Force | 300gf | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mechanical Life | 1,000,000 Cycles |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Functions, Extra | - | Features | White Actuator |
| Electrical Life | - | Detailed Description | Navigation Switch, 2 - Axis Digital (Mechanical Switch) Output |
| Current Rating | 1mA (DC) | Contact Material | - |
| Contact Finish | - | Actuator Type | Scroll Wheel and Directional Ring |
