TDP02H1SBD1

C&K

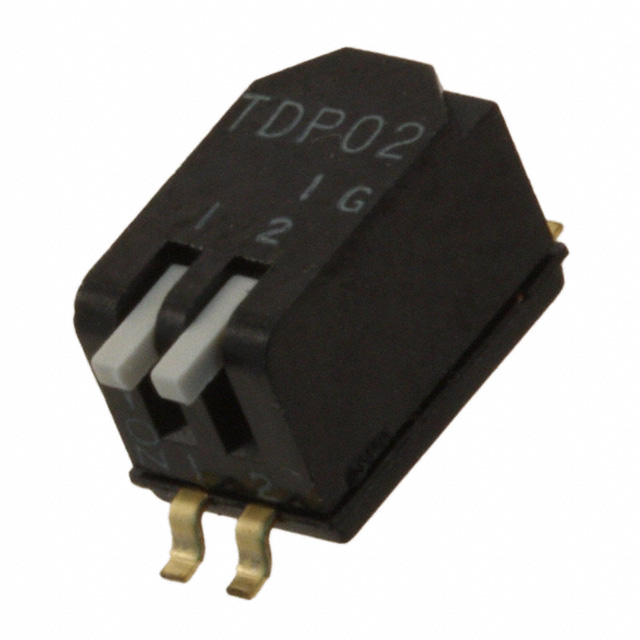

Image may be representation. See specifications for product details.

Product Overview

Part Number:	TDP02H1SBD1
Manufacturer/Brand:	C&K
Product description	SWITCH PIANO DIP SPST 25MA 24V
Datasheets:	TDP02H1SBD1.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	40756 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 40756 pcs

Reference Price (In US Dollars)

1 pcs: $0.759

10 pcs: $0.737

25 pcs: $0.699

50 pcs: $0.654

125 pcs: $0.638

250 pcs: $0.547

500 pcs: $0.532

1000 pcs: $0.456

5000 pcs: $0.418

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.759

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of TDP02H1SBD1

Part Number	TDP02H1SBD1	Manufacturer	C&K
Description	SWITCH PIANO DIP SPST 25MA 24V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	40756 pcs	Data sheet	TDP02H1SBD1.pdf
Washable	No	Voltage Rating	24VDC
Termination Style	Gull Wing	Series	TDP
Pitch	0.050" (1.27mm), Half	Packaging	Tube
Other Names	*TDP02H1SBD1 CKN9425	Operating Temperature	-40°C ~ 85°C
Number of Positions	2	Mounting Type	Surface Mount, Right Angle
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	1,000 Cycles
Manufacturer Standard Lead Time	14 Weeks	Length	0.144" (3.67mm)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height Above Board	0.161" (4.10mm)
Features	-	Electrical Life	1,000 Cycles
Detailed Description	Dip Switch SPST 2 Position Surface Mount, Right Angle Piano Actuator 25mA 24VDC	Current Rating	25mA
Contact Material	Copper Alloy	Contact Finish	Gold
Circuit	SPST	Body Material	Polyphenylene Sulfide (PPS), Glass Filled
Actuator Type	Piano	Actuator Level	Raised
