C&K

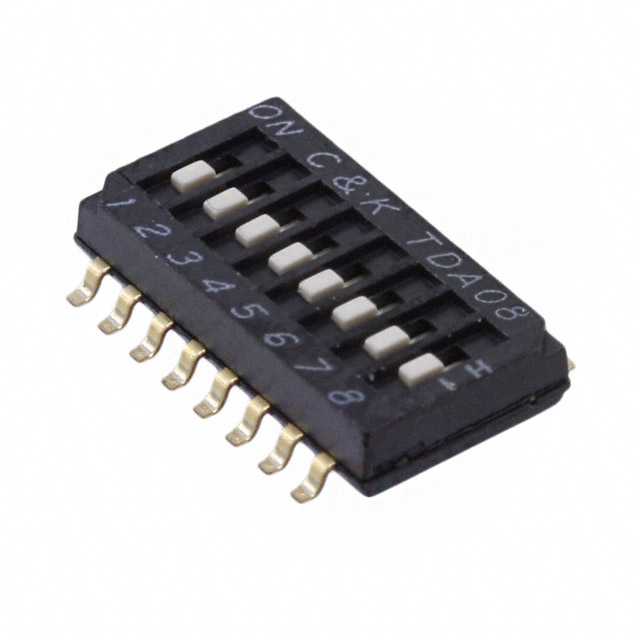

| Part Number | TDA08H0SB1R | Manufacturer | C&K |
|---|---|---|---|
| Description | SWITCH SLIDE DIP SPST 25MA 24V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 28029 pcs | Data sheet | TDA08H0SB1R.pdf |
| Washable | Yes | Voltage Rating | 24VDC |
| Termination Style | Gull Wing | Series | TDA |
| Pitch | 0.050" (1.27mm), Half | Packaging | Cut Tape (CT) |
| Other Names | *TDA08H0SB1R CKN9504CT TDA08H0SB1R-ND |
Operating Temperature | -40°C ~ 85°C |
| Number of Positions | 8 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mechanical Life | 1,000 Cycles |
| Manufacturer Standard Lead Time | 14 Weeks | Length | 0.444" (11.28mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height Above Board | 0.091" (2.30mm) |
| Features | Tape Seal | Electrical Life | 1,000 Cycles |
| Detailed Description | Dip Switch SPST 8 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC | Current Rating | 25mA |
| Contact Material | Copper Alloy | Contact Finish | Gold |
| Circuit | SPST | Body Material | Polyphenylene Sulfide (PPS) |
| Actuator Type | Slide (Standard) | Actuator Level | Flush, Recessed |
