SDA08H1BD

C&K

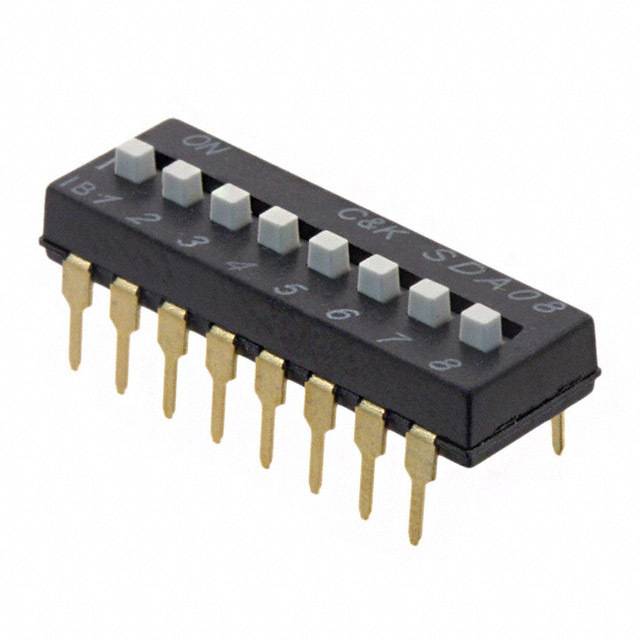

Image may be representation. See specifications for product details.

Product Overview

Part Number:	SDA08H1BD
Manufacturer/Brand:	C&K
Product description	SWITCH SLIDE DIP SPST 25MA 24V
Datasheets:	SDA08H1BD.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	60350 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 60350 pcs

Reference Price (In US Dollars)

1 pcs: $0.549

20 pcs: $0.518

40 pcs: $0.497

60 pcs: $0.465

100 pcs: $0.455

260 pcs: $0.402

500 pcs: $0.381

1000 pcs: $0.338

5000 pcs: $0.296

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.549

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of SDA08H1BD

Part Number	SDA08H1BD	Manufacturer	C&K
Description	SWITCH SLIDE DIP SPST 25MA 24V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	60350 pcs	Data sheet	SDA08H1BD.pdf
Washable	No	Voltage Rating	24VDC
Termination Style	PC Pin	Series	SDA
Pitch	0.100" (2.54mm), Full	Packaging	Tube
Other Names	*SDA08H1BD CKN6091	Operating Temperature	-40°C ~ 85°C
Number of Positions	8	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	1,000 Cycles
Manufacturer Standard Lead Time	16 Weeks	Length	0.876" (22.26mm)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height Above Board	0.228" (5.80mm)
Features	-	Electrical Life	1,000 Cycles
Detailed Description	Dip Switch SPST 8 Position Through Hole Slide (Standard) Actuator 25mA 24VDC	Current Rating	25mA
Contact Material	Beryllium Copper	Contact Finish	Gold
Circuit	SPST	Body Material	Polyphenylene Sulfide (PPS)
Actuator Type	Slide (Standard)	Actuator Level	Raised
