SDA05H0SBR

C&KC&K

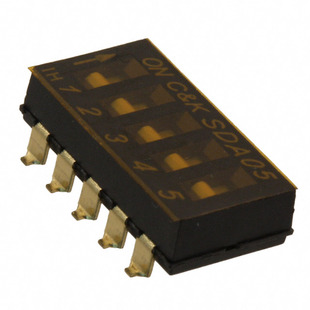

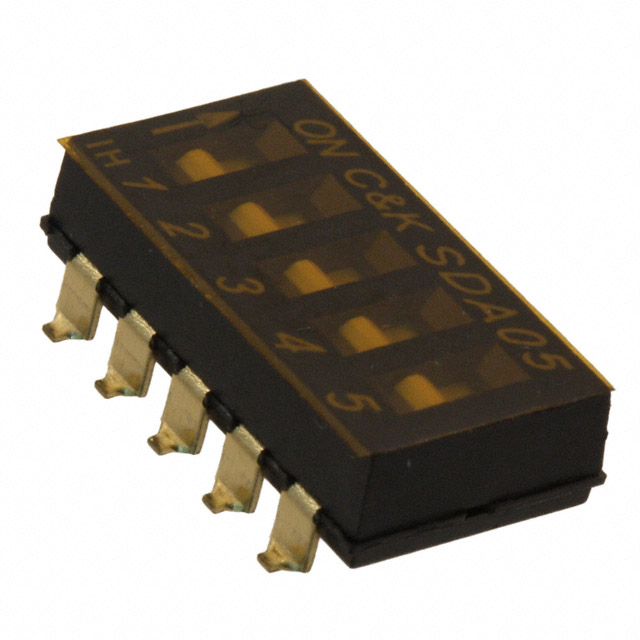

SDA05H0SBR Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: SDA05H0SBR
Manufacturer/Brand: C&K
Product description SWITCH SLIDE DIP SPST 25MA 24V
Datasheets: SDA05H0SBR.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 61902 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
Download Product Details PDF
In Stock 61902 pcs
Reference Price (In US Dollars)
750 pcs
$0.488
1500 pcs
$0.434
5250 pcs
$0.379
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:
  • Qty:
Total:$0.488

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of SDA05H0SBR

Part Number SDA05H0SBR Manufacturer C&K
Description SWITCH SLIDE DIP SPST 25MA 24V Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 61902 pcs Data sheet SDA05H0SBR.pdf
Washable Yes Voltage Rating 24VDC
Termination Style Gull Wing Series SDA
Pitch 0.100" (2.54mm), Full Packaging Tape & Reel (TR)
Other Names CKN9494TR Operating Temperature -40°C ~ 85°C
Number of Positions 5 Mounting Type Surface Mount
Moisture Sensitivity Level (MSL) 1 (Unlimited) Mechanical Life 1,000 Cycles
Manufacturer Standard Lead Time 16 Weeks Length 0.578" (14.68mm)
Lead Free Status / RoHS Status Lead free / RoHS Compliant Height Above Board 0.175" (4.45mm)
Features Tape Seal Electrical Life 1,000 Cycles
Detailed Description Dip Switch SPST 5 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC Current Rating 25mA
Contact Material Beryllium Copper Contact Finish Gold
Circuit SPST Body Material Polyphenylene Sulfide (PPS)
Actuator Type Slide (Standard) Actuator Level Flush, Recessed
