SDA03H1BD

C&K

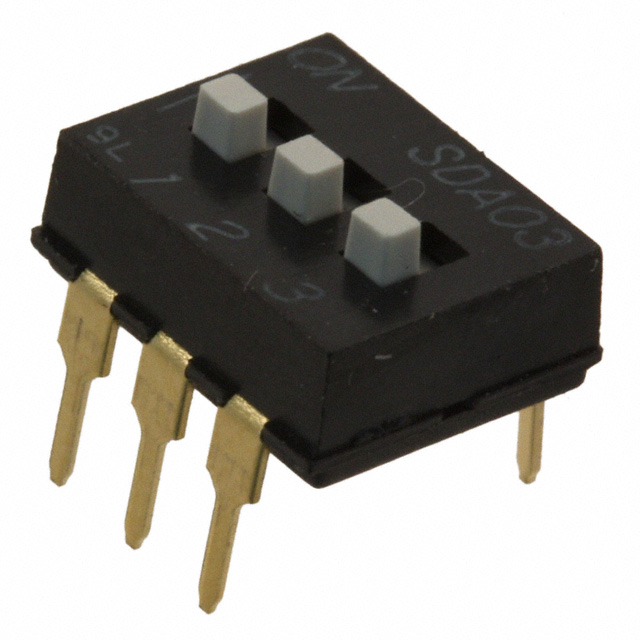

Image may be representation. See specifications for product details.

Product Overview

Part Number:	SDA03H1BD
Manufacturer/Brand:	C&K
Product description	SWITCH SLIDE DIP SPST 25MA 24V
Datasheets:	SDA03H1BD.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	84523 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 84523 pcs

Reference Price (In US Dollars)

1 pcs: $0.415

10 pcs: $0.406

45 pcs: $0.383

90 pcs: $0.359

135 pcs: $0.344

270 pcs: $0.328

540 pcs: $0.297

1035 pcs: $0.273

5040 pcs: $0.223

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.415

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of SDA03H1BD

Part Number	SDA03H1BD	Manufacturer	C&K
Description	SWITCH SLIDE DIP SPST 25MA 24V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	84523 pcs	Data sheet	SDA03H1BD.pdf
Washable	No	Voltage Rating	24VDC
Termination Style	PC Pin	Series	SDA
Pitch	0.100" (2.54mm), Full	Packaging	Tube
Other Names	*SDA03H1BD CKN6061	Operating Temperature	-40°C ~ 85°C
Number of Positions	3	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	1,000 Cycles
Manufacturer Standard Lead Time	16 Weeks	Length	0.378" (9.60mm)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height Above Board	0.228" (5.80mm)
Features	-	Electrical Life	1,000 Cycles
Detailed Description	Dip Switch SPST 3 Position Through Hole Slide (Standard) Actuator 25mA 24VDC	Current Rating	25mA
Contact Material	Beryllium Copper	Contact Finish	Gold
Circuit	SPST	Body Material	Polyphenylene Sulfide (PPS)
Actuator Type	Slide (Standard)	Actuator Level	Raised
