SDA02H1SBD

C&K

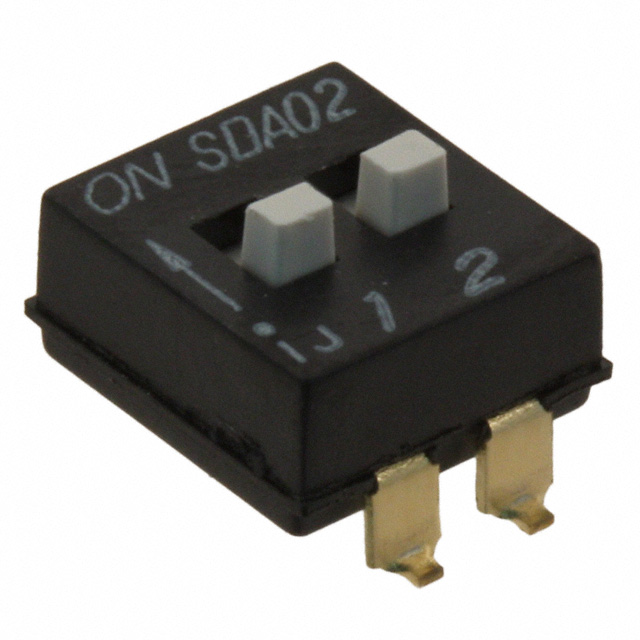

Image may be representation. See specifications for product details.

Product Overview

Part Number:	SDA02H1SBD
Manufacturer/Brand:	C&K
Product description	SWITCH SLIDE DIP SPST 25MA 24V
Datasheets:	SDA02H1SBD.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	71894 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 71894 pcs

Reference Price (In US Dollars)

1 pcs: $0.517

10 pcs: $0.506

25 pcs: $0.477

60 pcs: $0.448

120 pcs: $0.428

300 pcs: $0.409

540 pcs: $0.37

1020 pcs: $0.341

5040 pcs: $0.277

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.517

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of SDA02H1SBD

Part Number	SDA02H1SBD	Manufacturer	C&K
Description	SWITCH SLIDE DIP SPST 25MA 24V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	71894 pcs	Data sheet	SDA02H1SBD.pdf
Washable	No	Voltage Rating	24VDC
Termination Style	Gull Wing	Series	SDA
Pitch	0.100" (2.54mm), Full	Packaging	Tube
Other Names	*SDA02H1SBD CKN6056	Operating Temperature	-40°C ~ 85°C
Number of Positions	2	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	1,000 Cycles
Manufacturer Standard Lead Time	16 Weeks	Length	0.278" (7.06mm)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height Above Board	0.214" (5.45mm)
Features	-	Electrical Life	1,000 Cycles
Detailed Description	Dip Switch SPST 2 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC	Current Rating	25mA
Contact Material	Beryllium Copper	Contact Finish	Gold
Circuit	SPST	Body Material	Polyphenylene Sulfide (PPS)
Actuator Type	Slide (Standard)	Actuator Level	Raised
