SD04H1SB

C&K

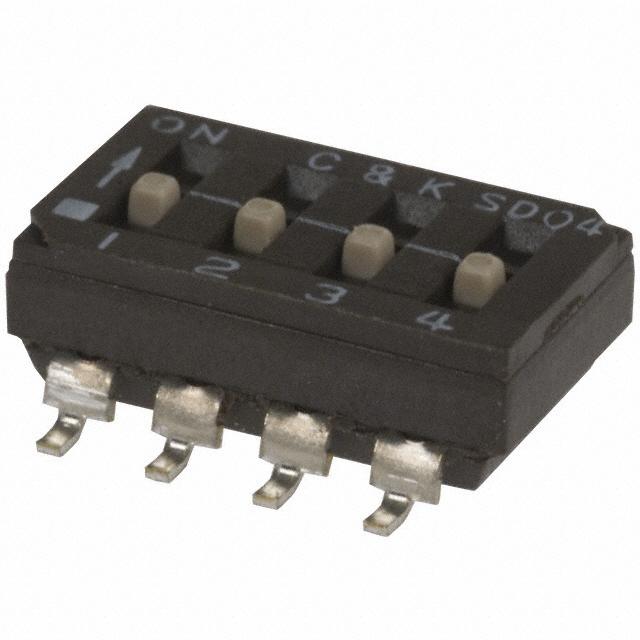

Image may be representation. See specifications for product details.

Product Overview

Part Number:	SD04H1SB
Manufacturer/Brand:	C&K
Product description	SWITCH SLIDE DIP SPST 100MA 25V
Datasheets:	SD04H1SB.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	75022 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 75022 pcs

Reference Price (In US Dollars)

1 pcs: $0.473

10 pcs: $0.464

45 pcs: $0.437

90 pcs: $0.41

135 pcs: $0.393

270 pcs: $0.375

540 pcs: $0.339

1035 pcs: $0.312

5040 pcs: $0.254

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.473

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of SD04H1SB

Part Number	SD04H1SB	Manufacturer	C&K
Description	SWITCH SLIDE DIP SPST 100MA 25V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	75022 pcs	Data sheet	SD04H1SB.pdf
Washable	Yes	Voltage Rating	25VDC
Termination Style	Gull Wing	Series	SD
Pitch	0.100" (2.54mm), Full	Packaging	Tube
Other Names	*SD04H1SB CKN6117	Operating Temperature	-40°C ~ 85°C
Number of Positions	4	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	2,000 Cycles
Manufacturer Standard Lead Time	13 Weeks	Length	0.458" (11.63mm)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height Above Board	0.180" (4.57mm)
Features	Tape Seal	Electrical Life	2,000 Cycles
Detailed Description	Dip Switch SPST 4 Position Surface Mount Slide (Standard) Actuator 100mA 25VDC	Current Rating	100mA
Contact Material	Beryllium Copper	Contact Finish	Gold
Circuit	SPST	Body Material	Polyphthalamide (PPA)
Actuator Type	Slide (Standard)	Actuator Level	Raised
