C&K

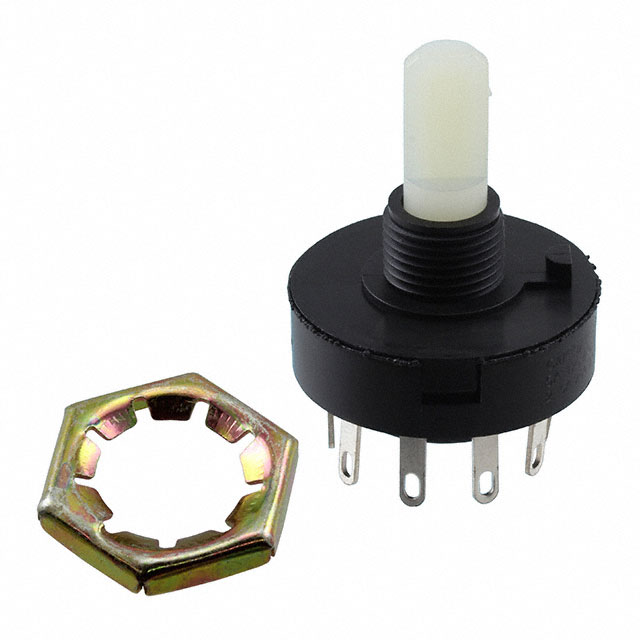

| Part Number | R20507RR03Q | Manufacturer | C&K |
|---|---|---|---|
| Description | SWITCH ROTARY 5POS 5A 125V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 17902 pcs | Data sheet | R20507RR03Q.pdf |
| Voltage Rating - DC | 125V | Voltage Rating - AC | 125V |
| Termination Style | Solder Lug | Series | R |
| Panel Cutout Dimensions | Circular - 9.78mm Dia | Other Names | *R20507RR03Q CKN11062 R20507RR03Q-ND |
| Operating Force | - | Number of Positions | 5 |
| Number of Poles per Deck | 2 | Number of Decks | 1 |
| Mounting Type | Panel Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 11 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Index Stops | Fixed | Features | - |
| Detailed Description | Rotary Switch 5 Position DP5T 5A (AC), 500mA (DC) 125VAC Panel Mount | Depth Behind Panel | 14.61mm |
| Current Rating | 5A (AC), 500mA (DC) | Contact Timing | Non-Shorting (BBM) |
| Contact Material | Copper | Contact Finish | Silver |
| Circuit per Deck | DP5T | Angle of Throw | 36° |
| Actuator Type | Flatted (6.35mm Dia) | Actuator Length | 12.70mm |
