R10305RN02Q

C&K

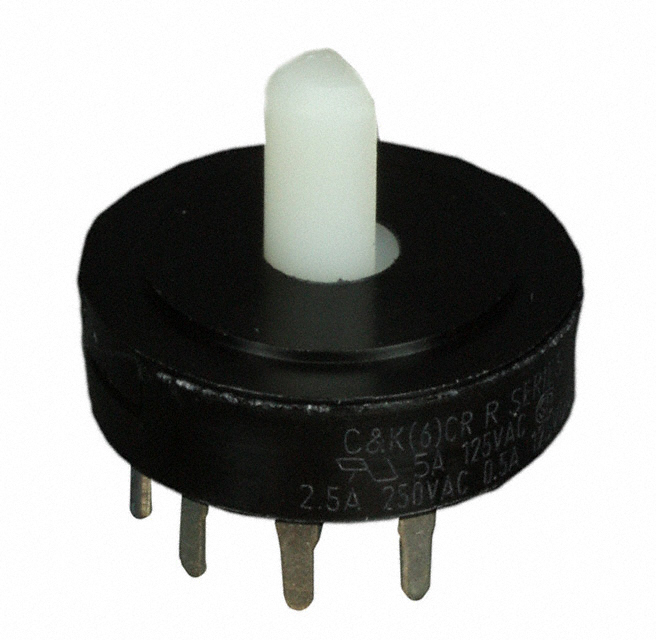

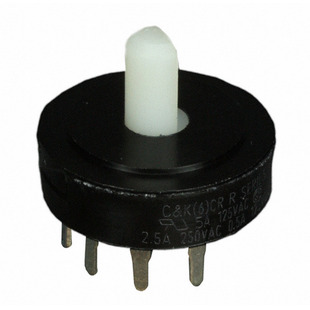

Image may be representation. See specifications for product details.

Product Overview

Part Number:	R10305RN02Q
Manufacturer/Brand:	C&K
Product description	SWITCH ROTARY 3POS 5A 125V
Datasheets:	R10305RN02Q.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	29286 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 29286 pcs

Reference Price (In US Dollars)

1 pcs: $1.347

10 pcs: $1.291

25 pcs: $1.179

50 pcs: $1.123

100 pcs: $1.01

250 pcs: $0.926

500 pcs: $0.898

1000 pcs: $0.87

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.347

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of R10305RN02Q

Part Number	R10305RN02Q	Manufacturer	C&K
Description	SWITCH ROTARY 3POS 5A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	29286 pcs	Data sheet	R10305RN02Q.pdf
Voltage Rating - DC	125V	Voltage Rating - AC	125V
Termination Style	PC Pin	Series	R
Panel Cutout Dimensions	-	Other Names	*R10305RN02Q CKN9479
Operating Force	-	Number of Positions	3
Number of Poles per Deck	1	Number of Decks	1
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	11 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Index Stops	Fixed	Features	-
Detailed Description	Rotary Switch 3 Position SP3T 5A (AC), 500mA (DC) 125VAC Through Hole	Depth Behind Panel	10.29mm
Current Rating	5A (AC), 500mA (DC)	Contact Timing	Non-Shorting (BBM)
Contact Material	Copper	Contact Finish	Silver
Circuit per Deck	SP3T	Angle of Throw	36°
Actuator Type	Flatted (6.35mm Dia)	Actuator Length	9.53mm
