C&K

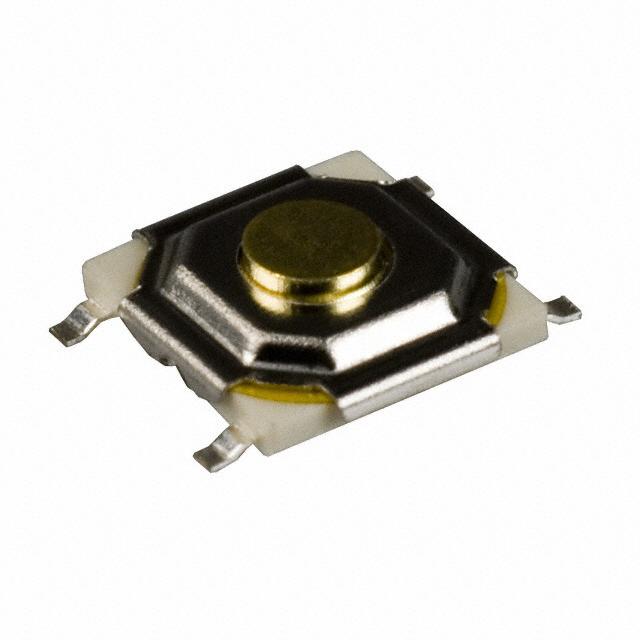

| Part Number | PTS525SM15SMTR2 LFS | Manufacturer | C&K |
|---|---|---|---|
| Description | SWITCH TACTILE SPST-NO 0.02A 15V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 539305 pcs | Data sheet | PTS525SM15SMTR2 LFS.pdf |
| Termination Style | Gull Wing | Switch Travel | 0.25mm |
| Switch Function | Off-Mom | Series | PTS525 |
| Packaging | Tape & Reel (TR) | Outline | 5.25mm x 5.25mm |
| Other Names | CKN9104TR PTS525SM10SMTR LFS PTS525SM10SMTRLFS PTS525SM15SMTR2LFS Y96C252Q1FP LFS Y96C252Q1FPLFS Y97CT23B2CCFP |
Operating Temperature | -20°C ~ 70°C |
| Operating Force | 160gf | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mechanical Life | 1,000,000 Cycles |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Illumination Voltage (Nominal) | - |
| Illumination Type, Color | - | Illumination | Non-Illuminated |
| Features | - | Detailed Description | Tactile Switch SPST-NO Top Actuated Surface Mount |
| Contact Rating @ Voltage | 0.02A @ 15VDC | Circuit | SPST-NO |
| Actuator Type | Standard | Actuator Orientation | Top Actuated |
| Actuator Material | Polyamide (PA66), Nylon 6/6 | Actuator Length, Right Angle | - |
| Actuator Height off PCB, Vertical | 1.50mm |
