PT103SSQ

C&K

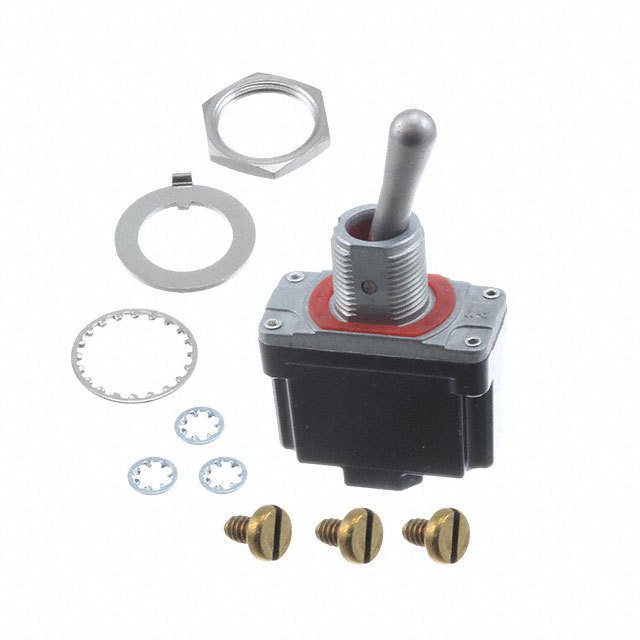

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PT103SSQ
Manufacturer/Brand:	C&K
Product description	SWITCH PT103S TOGGLE
Datasheets:	PT103SSQ.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	5404 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 5404 pcs

Reference Price (In US Dollars)

1 pcs: $5.791

20 pcs: $5.477

40 pcs: $5.321

60 pcs: $5.164

100 pcs: $5.008

260 pcs: $4.851

500 pcs: $4.069

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$5.791

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PT103SSQ

Part Number	PT103SSQ	Manufacturer	C&K
Description	SWITCH PT103S TOGGLE	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5404 pcs	Data sheet	PT103SSQ.pdf
Voltage Rating - DC	28V	Voltage Rating - AC	277V
Termination Style	Screw Terminal	Switch Function	On-Off-On
Series	PT	Panel Cutout Dimensions	Circular - 12.40mm Dia
Packaging	Tray	Other Names	*PT103SSQ CKN11542
Operating Temperature	-40°C ~ 85°C	Mounting Type	Panel Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	IP66/68 - Dust Tight, Water Resistant, Waterproof	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Illumination	Non-Illuminated
Features	Sealed	Electrical Life	10,000 Cycles
Detailed Description	Toggle Switch SPDT Panel Mount	Current Rating	15A (AC/DC)
Circuit	SPDT	Bushing Thread	15/32-32
Actuator Type	Standard Round	Actuator Material	Stainless Steel
Actuator Length	17.20mm
