MB00S2NZQD

C&K

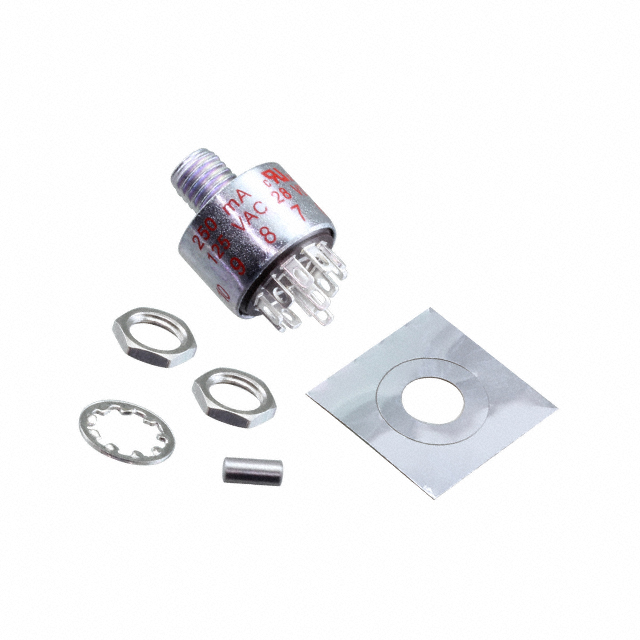

Image may be representation. See specifications for product details.

Product Overview

Part Number:	MB00S2NZQD
Manufacturer/Brand:	C&K
Product description	SWITCH ROTARY 5POS 250MA 125V
Datasheets:	MB00S2NZQD.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	4586 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 4586 pcs

Reference Price (In US Dollars)

1 pcs: $7.265

10 pcs: $6.774

25 pcs: $6.675

50 pcs: $6.577

100 pcs: $5.792

250 pcs: $5.596

500 pcs: $5.497

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$7.265

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of MB00S2NZQD

Part Number	MB00S2NZQD	Manufacturer	C&K
Description	SWITCH ROTARY 5POS 250MA 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4586 pcs	Data sheet	MB00S2NZQD.pdf
Voltage Rating - DC	28V	Voltage Rating - AC	125V
Termination Style	Solder Lug	Series	M
Panel Cutout Dimensions	Circular - 6.60mm Dia	Other Names	CKN11889 MB00S2NZQD-ND
Operating Force	2.880 ~ 5.041gfm	Number of Positions	5
Number of Poles per Deck	2	Number of Decks	1
Mounting Type	Panel Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	13 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Index Stops	Continuous	Features	-
Detailed Description	Rotary Switch 5 Position DP5T 250mA (AC/DC) 125VAC Panel Mount	Depth Behind Panel	14.86mm
Current Rating	250mA (AC/DC)	Contact Timing	Non-Shorting (BBM)
Contact Material	Copper Alloy	Contact Finish	Silver
Circuit per Deck	DP5T	Angle of Throw	36°
Actuator Type	Screwdriver Slot	Actuator Length	Flush
