LCGGL9P00EC

C&K

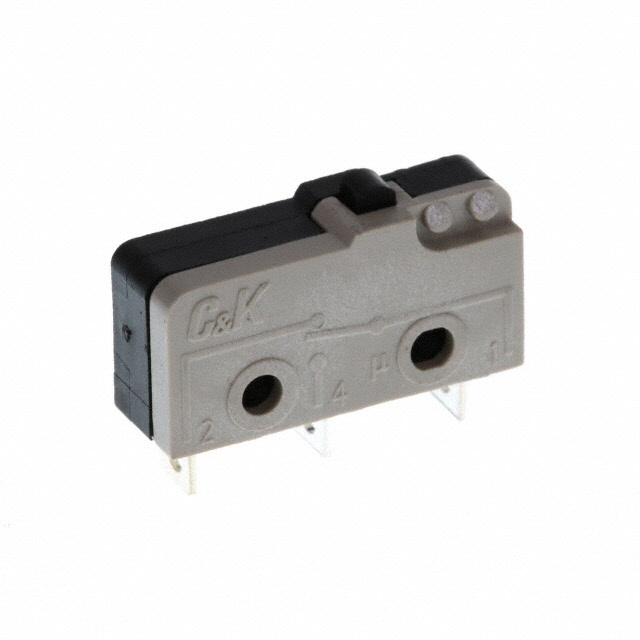

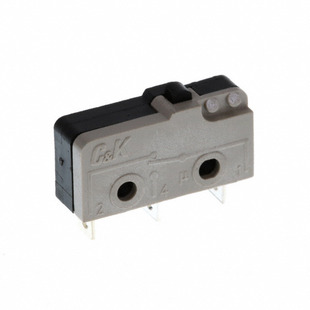

Image may be representation. See specifications for product details.

Product Overview

Part Number:	LCGGL9P00EC
Manufacturer/Brand:	C&K
Product description	SWITCH SNAP ACTION SPDT 5A 125V
Datasheets:	LCGGL9P00EC.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	11548 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 11548 pcs

Reference Price (In US Dollars)

1 pcs: $3.24

10 pcs: $2.593

25 pcs: $2.464

50 pcs: $2.399

100 pcs: $2.075

250 pcs: $1.945

500 pcs: $1.848

1000 pcs: $1.783

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$3.24

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of LCGGL9P00EC

Part Number	LCGGL9P00EC	Manufacturer	C&K
Description	SWITCH SNAP ACTION SPDT 5A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	11548 pcs	Data sheet	LCGGL9P00EC.pdf
Voltage Rating - AC	125V	Termination Style	Solder Lug
Switch Function	On-Mom	Series	LC
Release Force	28gf	Pretravel	0.030" (0.8mm)
Packaging	Bulk	Overtravel	0.010" (0.25mm)
Other Names	*LCGGL9P00EC CKN11218 LCGGL9P00EC-ND	Operating Temperature	-25°C ~ 85°C
Operating Position	0.330" (8.4mm)	Operating Force	142gf
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	-	Manufacturer Standard Lead Time	11 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Features	-	Electrical Life	6,000 Cycles
Differential Travel	0.004" (0.1mm)	Current Rating	5A (AC)
Circuit	SPDT	Actuator Type	Round (Pin Plunger)
