C&K

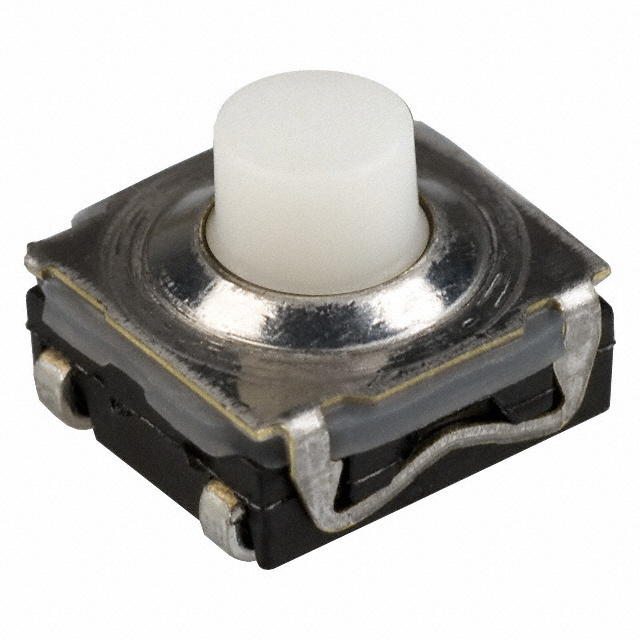

| Part Number | KST243J | Manufacturer | C&K |
|---|---|---|---|
| Description | SWITCH TACTILE SPST-NO 0.01A 32V | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 4205 pcs | Data sheet | KST243J.pdf |
| Termination Style | J Lead | Switch Travel | 1.30mm |
| Switch Function | Off-Mom | Series | KST |
| Packaging | Tape & Reel (TR) | Outline | 6.20mm x 6.20mm |
| Other Names | 401-1526-2 KST243JTR KST243JTR-ND Y48A43211FP |
Operating Temperature | -40°C ~ 125°C |
| Operating Force | 350gf | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mechanical Life | 100,000 Cycles |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Ingress Protection | IP40 |
| Illumination Voltage (Nominal) | - | Illumination Type, Color | - |
| Illumination | Non-Illuminated | Features | - |
| Detailed Description | Tactile Switch SPST-NO Top Actuated Surface Mount | Contact Rating @ Voltage | 0.01A @ 32VDC |
| Circuit | SPST-NO | Actuator Type | Standard |
| Actuator Orientation | Top Actuated | Actuator Material | Rubber |
| Actuator Length, Right Angle | - | Actuator Height off PCB, Vertical | 5.00mm |
