C&K
| Part Number | KSA0M332 | Manufacturer | C&K |
|---|---|---|---|

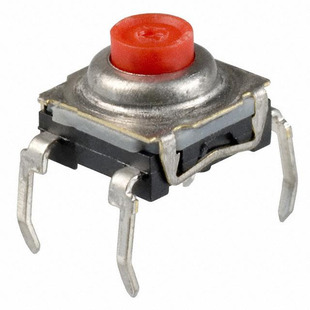

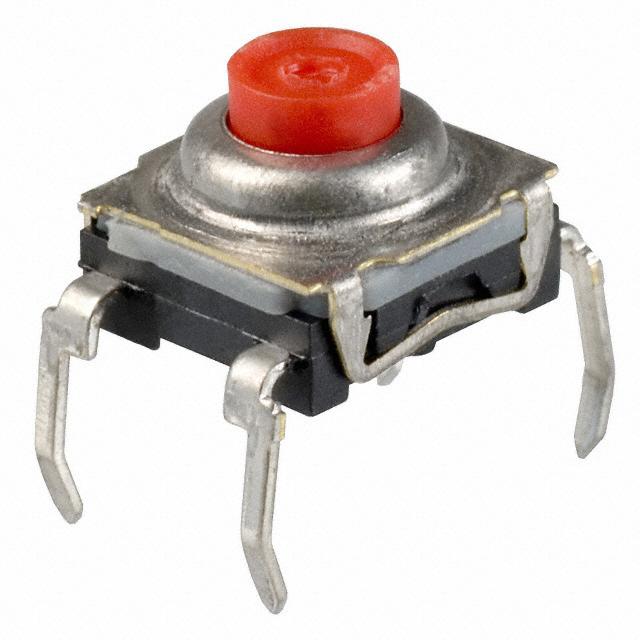

| Description | SWITCH TACTILE SPST-NO 0.01A 50V | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 4810 pcs | Data sheet | KSA0M332.pdf |
| Termination Style | PC Pin | Switch Travel | 0.50mm |
| Switch Function | Off-Mom | Series | KSA MKII |
| Packaging | Bulk | Outline | 6.20mm x 6.20mm |
| Other Names | *KSA0M332 401-1438 KSA0M332-ND Y33A33215FP |
Operating Temperature | -40°C ~ 125°C |
| Operating Force | 130gf | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mechanical Life | 1,000,000 Cycles |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Illumination Voltage (Nominal) | - | Illumination Type, Color | - |
| Illumination | Non-Illuminated | Features | - |
| Detailed Description | Tactile Switch SPST-NO Top Actuated Through Hole | Contact Rating @ Voltage | 0.01A @ 50VDC |
| Circuit | SPST-NO | Actuator Type | Standard |
| Actuator Orientation | Top Actuated | Actuator Material | - |
| Actuator Length, Right Angle | - | Actuator Height off PCB, Vertical | 4.70mm |
