JCH1AQNP

C&KC&K

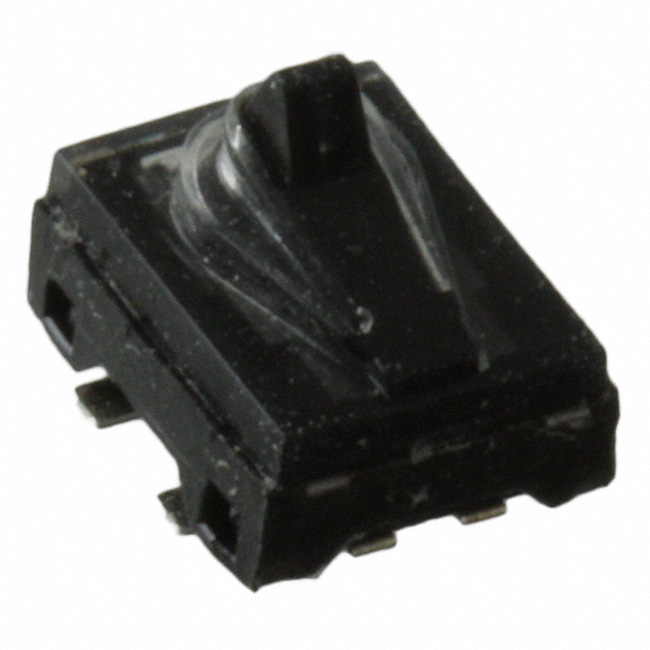

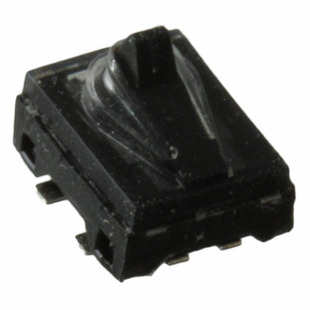

JCH1AQNP Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: JCH1AQNP
Manufacturer/Brand: C&K
Product description SWITCH DETECTOR SPST-NO 1MA 5V
Datasheets: 1.JCH1AQNP.pdf2.JCH1AQNP.pdf
RoHs Status Not applicable / RoHS Compliant
Stock Condition 3628 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
Download Product Details PDF
In Stock 3628 pcs
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of JCH1AQNP

Part Number JCH1AQNP Manufacturer C&K
Description SWITCH DETECTOR SPST-NO 1MA 5V Lead Free Status / RoHS Status Not applicable / RoHS Compliant
Quantity Available 3628 pcs Data sheet 1.JCH1AQNP.pdf2.JCH1AQNP.pdf
Voltage Rating - DC 5V Termination Style SMD (SMT) Tab
Switch Function Off-Mom Series JCH
Release Force - Pretravel -
Packaging Bulk Overtravel 0.098" (2.5mm)
Other Names *JCH1AQNP
CKN10497		 Operating Temperature -20°C ~ 70°C
Operating Position 0.138" (3.5mm) Operating Force 65gf
Mounting Type Surface Mount Moisture Sensitivity Level (MSL) 1 (Unlimited)
Mechanical Life 100,000 Cycles Lead Free Status / RoHS Status Not applicable / RoHS Compliant
Ingress Protection IP64 - Dust Tight, Water Resistant Features -
Electrical Life - Differential Travel -
Current Rating 1mA (DC) Circuit SPST-NO
Actuator Type Angled Toggle (Detector)
