F20308RS02Q

C&KC&K

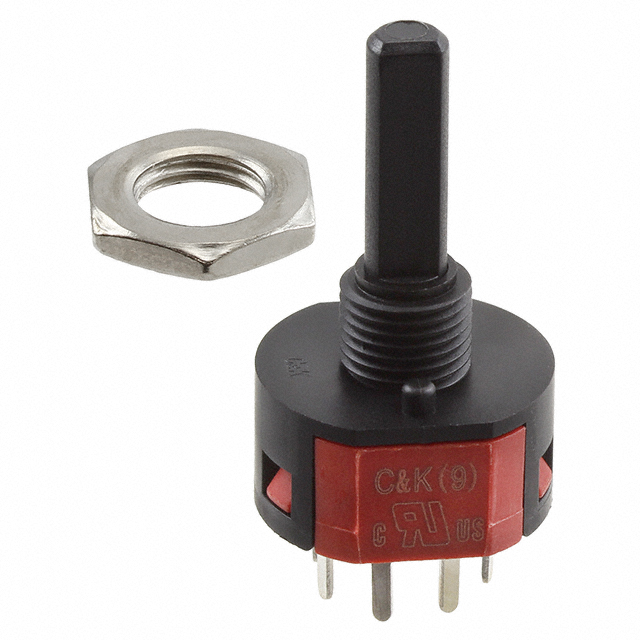

F20308RS02Q Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: F20308RS02Q
Manufacturer/Brand: C&K
Product description SWITCH ROTARY 3POS 4A 125V
Datasheets: F20308RS02Q.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 17687 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 17687 pcs
Reference Price (In US Dollars)
1 pcs
$1.759
10 pcs
$1.687
25 pcs
$1.54
50 pcs
$1.467
100 pcs
$1.32
250 pcs
$1.21
500 pcs
$1.173
1000 pcs
$1.137
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$1.759

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of F20308RS02Q

Part Number F20308RS02Q Manufacturer C&K
Description SWITCH ROTARY 3POS 4A 125V Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 17687 pcs Data sheet F20308RS02Q.pdf
Voltage Rating - DC 28V Voltage Rating - AC 125V
Termination Style PC Pin Series F
Panel Cutout Dimensions Circular - 8.08mm Dia Other Names *F20308RS02Q
CKN11018
F20308RS02Q-ND
Operating Force - Number of Positions 3
Number of Poles per Deck 2 Number of Decks 1
Mounting Type Panel Mount, Through Hole Moisture Sensitivity Level (MSL) 1 (Unlimited)
Manufacturer Standard Lead Time 11 Weeks Lead Free Status / RoHS Status Lead free / RoHS Compliant
Index Stops Fixed Features -
Detailed Description Rotary Switch 3 Position DP3T 4A (AC/DC) 125VAC Panel Mount, Through Hole Depth Behind Panel 12.45mm
Current Rating 4A (AC/DC) Contact Timing Not Specified
Contact Material Copper Contact Finish Silver
Circuit per Deck DP3T Angle of Throw 45°
Actuator Type Flatted (4.75mm Dia) Actuator Length 14.86mm
