C&K

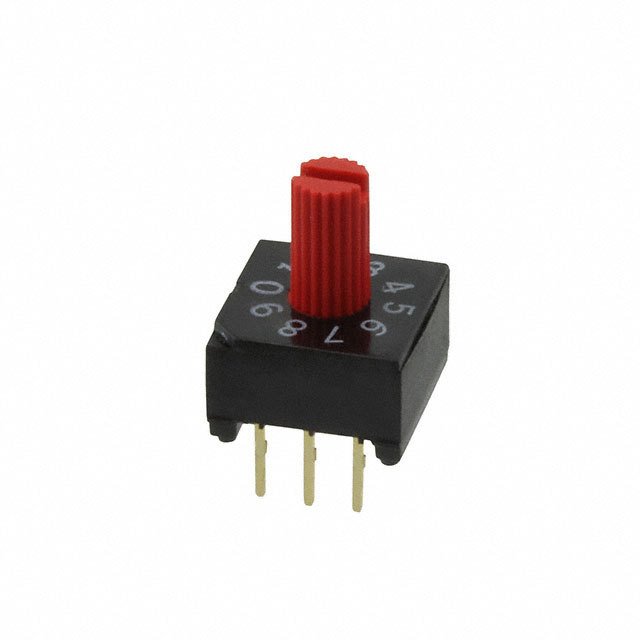

| Part Number | CRD10RL1CB | Manufacturer | C&K |
|---|---|---|---|
| Description | SWITCH ROTARY DIP BCD 0.40VA 20V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 20330 pcs | Data sheet | CRD10RL1CB.pdf |
| Washable | Yes | Voltage Rating | 20VAC/DC |
| Termination Style | PC Pin | Series | CRD |
| Pitch | 0.100" (2.54mm), Full | Packaging | Tube |
| Other Names | *CRD10RL1CB CKN10631 CRD10RL1CB-ND |
Operating Temperature | -20°C ~ 85°C |
| Number of Positions | 10 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mechanical Life | 30,000 Steps |
| Manufacturer Standard Lead Time | 16 Weeks | Length | 0.393" (10.00mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height Above Board | 0.543" (13.80mm) |
| Features | Process Sealed | Electrical Life | 20,000 Steps |
| Detailed Description | Dip Switch BCD 10 Position Through Hole Rotary with Shaft Actuator 0.4VA 20VAC/DC | Current Rating | 0.4VA |
| Contact Material | Beryllium Copper | Contact Finish | Gold |
| Circuit | BCD | Body Material | Polyphenylene Sulfide (PPS) |
| Actuator Type | Rotary with Shaft | Actuator Level | Raised |
