C&K

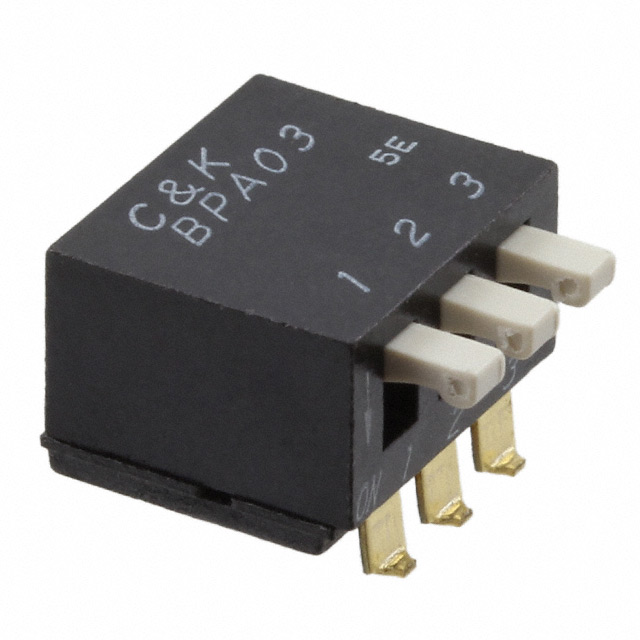

| Part Number | BPA03SB | Manufacturer | C&K |
|---|---|---|---|
| Description | SWITCH SLIDE DIP SPST 100MA 5V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 66028 pcs | Data sheet | BPA03SB.pdf |
| Washable | Yes | Voltage Rating | 5VDC |
| Termination Style | Gull Wing | Series | BPA |
| Pitch | 0.100" (2.54mm), Full | Packaging | Tube |
| Other Names | *BPA03SB BPA03SB-ND CKN10901 |
Operating Temperature | -20°C ~ 85°C |
| Number of Positions | 3 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mechanical Life | 1,000 Cycles |
| Manufacturer Standard Lead Time | 14 Weeks | Length | 0.376" (9.55mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height Above Board | 0.274" (6.95mm) |
| Features | - | Electrical Life | 1,000 Cycles |
| Detailed Description | Dip Switch SPST 3 Position Surface Mount, Right Angle Slide (Standard) Actuator 100mA 5VDC | Current Rating | 100mA |
| Contact Material | Beryllium Copper | Contact Finish | Gold |
| Circuit | SPST | Body Material | Polyphenylene Sulfide (PPS) |
| Actuator Type | Slide (Standard) | Actuator Level | Raised |
