C&K

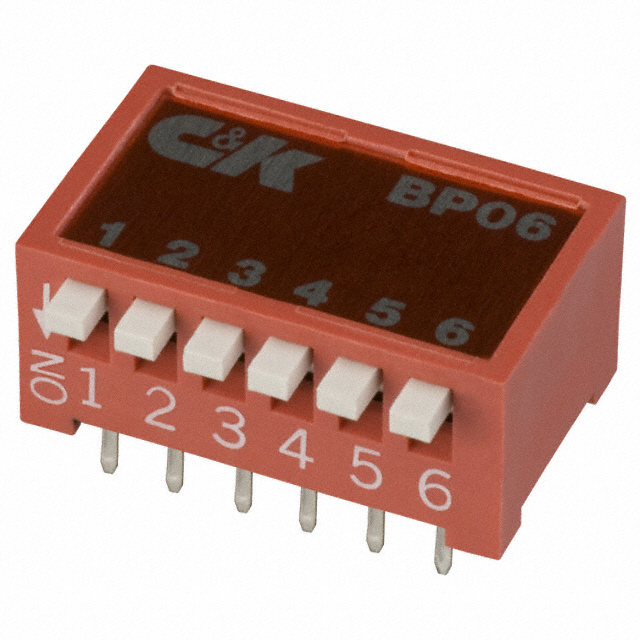

| Part Number | BP06YE | Manufacturer | C&K |
|---|---|---|---|
| Description | SWITCH SLIDE DIP SPST 100MA 5V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4796 pcs | Data sheet | BP06YE.pdf |
| Washable | No | Voltage Rating | 5VDC |
| Termination Style | PC Pin | Series | BP |
| Pitch | 0.100" (2.54mm), Full | Packaging | Tube |
| Other Names | *BP06YE BP06YE-ND CKN6029 |
Operating Temperature | -20°C ~ 60°C |
| Number of Positions | 6 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mechanical Life | 1,000 Cycles |
| Length | 0.706" (17.93mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Above Board | 0.315" (8.00mm) | Features | Epoxy Sealed Terminals |
| Electrical Life | 1,000 Cycles | Detailed Description | Dip Switch SPST 6 Position Through Hole, Right Angle Slide (Standard) Actuator 100mA 5VDC |
| Current Rating | 100mA | Contact Material | Phosphor Bronze |
| Contact Finish | Tin | Circuit | SPST |
| Body Material | Polyester (PET), Glass Filled | Actuator Type | Slide (Standard) |
| Actuator Level | Raised |
