BD12AV

C&K

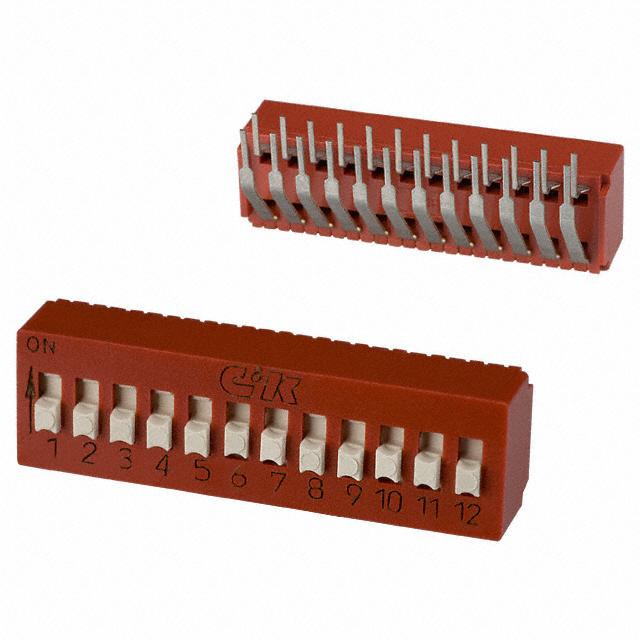

Image may be representation. See specifications for product details.

Product Overview

Part Number:	BD12AV
Manufacturer/Brand:	C&K
Product description	SWITCH SLIDE DIP SPST 100MA 5V
Datasheets:	BD12AV.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	20657 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 20657 pcs

Reference Price (In US Dollars)

1 pcs: $1.477

15 pcs: $1.418

30 pcs: $1.356

60 pcs: $1.294

105 pcs: $1.14

255 pcs: $1.078

510 pcs: $1.048

1005 pcs: $0.894

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$1.477

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of BD12AV

Part Number	BD12AV	Manufacturer	C&K
Description	SWITCH SLIDE DIP SPST 100MA 5V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	20657 pcs	Data sheet	BD12AV.pdf
Washable	Yes	Voltage Rating	5VDC
Termination Style	PC Pin	Series	BD
Pitch	0.100" (2.54mm), Full	Packaging	Tube
Other Names	*BD12AV CKN3020	Operating Temperature	-40°C ~ 85°C
Number of Positions	12	Mounting Type	Through Hole, Right Angle
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	10,000 Cycles
Manufacturer Standard Lead Time	24 Weeks	Length	1.280" (32.51mm)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height Above Board	0.380" (9.64mm)
Features	-	Electrical Life	10,000 Cycles
Detailed Description	Dip Switch SPST 12 Position Through Hole, Right Angle Slide (Standard) Actuator 100mA 5VDC	Current Rating	100mA
Contact Material	Phosphor Bronze	Contact Finish	Gold
Circuit	SPST	Body Material	Polybutylene Terephthalate (PBT), Glass Filled
Actuator Type	Slide (Standard)	Actuator Level	Raised
