BD09

C&K

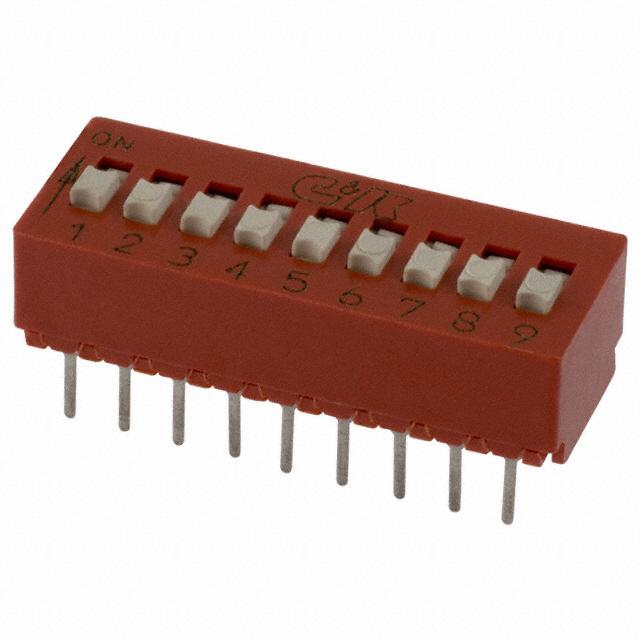

Image may be representation. See specifications for product details.

Product Overview

Part Number:	BD09
Manufacturer/Brand:	C&K
Product description	SWITCH SLIDE DIP SPST 100MA 5V
Datasheets:	BD09.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	60303 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 60303 pcs

Reference Price (In US Dollars)

1 pcs: $0.618

21 pcs: $0.583

42 pcs: $0.559

63 pcs: $0.524

105 pcs: $0.512

252 pcs: $0.452

504 pcs: $0.428

1008 pcs: $0.381

5019 pcs: $0.333

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.618

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of BD09

Part Number	BD09	Manufacturer	C&K
Description	SWITCH SLIDE DIP SPST 100MA 5V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	60303 pcs	Data sheet	BD09.pdf
Washable	Yes	Voltage Rating	5VDC
Termination Style	PC Pin	Series	BD
Pitch	0.100" (2.54mm), Full	Packaging	Tube
Other Names	*BD09 CKN3008	Operating Temperature	-40°C ~ 85°C
Number of Positions	9	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	10,000 Cycles
Manufacturer Standard Lead Time	12 Weeks	Length	0.980" (24.89mm)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height Above Board	0.297" (7.54mm)
Features	-	Electrical Life	10,000 Cycles
Detailed Description	Dip Switch SPST 9 Position Through Hole Slide (Standard) Actuator 100mA 5VDC	Current Rating	100mA
Contact Material	Phosphor Bronze	Contact Finish	Gold
Circuit	SPST	Body Material	Polybutylene Terephthalate (PBT), Glass Filled
Actuator Type	Slide (Standard)	Actuator Level	Raised
