C&K

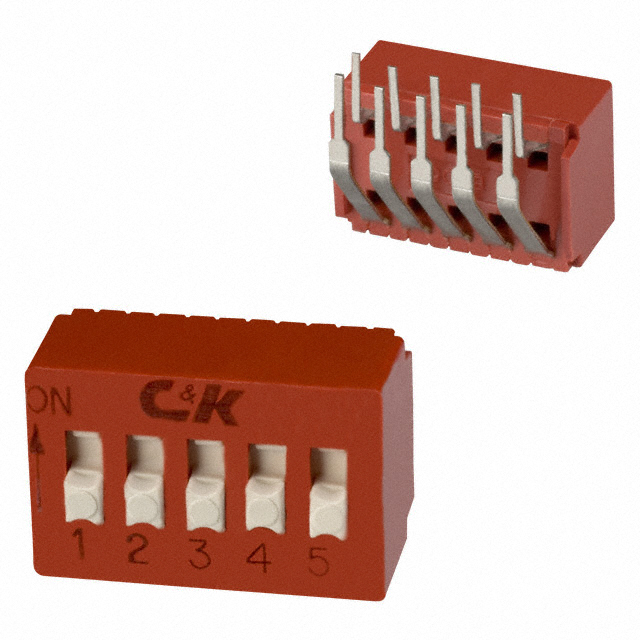

| Part Number | BD05AV2 | Manufacturer | C&K |
|---|---|---|---|
| Description | SWITCH SLIDE DIP SPST 100MA 5V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3070 pcs | Data sheet | BD05AV2.pdf |
| Washable | Yes | Voltage Rating | 5VDC |
| Termination Style | PC Pin | Series | BD |
| Pitch | 0.100" (2.54mm), Full | Packaging | Tube |
| Other Names | *BD05AV2 BD05AV2-ND CKN6015 |
Operating Temperature | -40°C ~ 85°C |
| Number of Positions | 5 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mechanical Life | 10,000 Cycles |
| Length | 0.580" (14.73mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Above Board | 0.380" (9.64mm) | Features | - |
| Electrical Life | 10,000 Cycles | Detailed Description | Dip Switch SPST 5 Position Through Hole, Right Angle Slide (Standard) Actuator 100mA 5VDC |
| Current Rating | 100mA | Contact Material | Phosphor Bronze |
| Contact Finish | Gold | Circuit | SPST |
| Body Material | Polybutylene Terephthalate (PBT), Glass Filled | Actuator Type | Slide (Standard) |
| Actuator Level | Raised |
