C&K

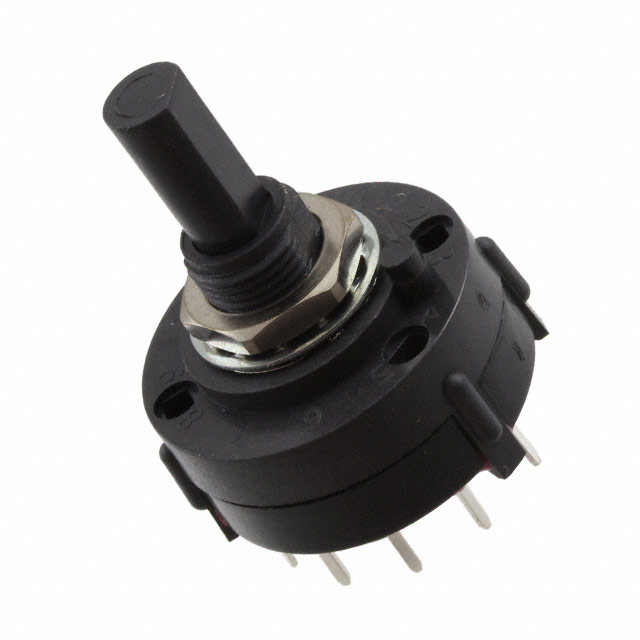

| Part Number | A20505RNCQK | Manufacturer | C&K |
|---|---|---|---|
| Description | SWITCH ROTARY 5POS 2.5A 125V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 9226 pcs | Data sheet | A20505RNCQK.pdf |
| Voltage Rating - DC | 125V | Voltage Rating - AC | 125V |
| Termination Style | PC Pin | Series | A |
| Panel Cutout Dimensions | Circular - 9.80mm Dia | Other Names | *A20505RNCQK A20505RNCQK-ND CKN11020 |
| Operating Force | - | Number of Positions | 5 |
| Number of Poles per Deck | 2 | Number of Decks | 1 |
| Mounting Type | Panel Mount, Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 11 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Index Stops | Fixed | Features | Epoxy Sealed Terminals, Splashproof Bushing Seal |
| Detailed Description | Rotary Switch 5 Position DP5T 2.5A (AC), 350mA (DC) 125VAC Panel Mount, Through Hole | Depth Behind Panel | 14.48mm |
| Current Rating | 2.5A (AC), 350mA (DC) | Contact Timing | Non-Shorting (BBM) |
| Contact Material | Silver (Ag) | Contact Finish | Silver |
| Circuit per Deck | DP5T | Angle of Throw | 30° |
| Actuator Type | Flatted (6.35mm Dia) | Actuator Length | 12.70mm |
