7301TZGE

C&K

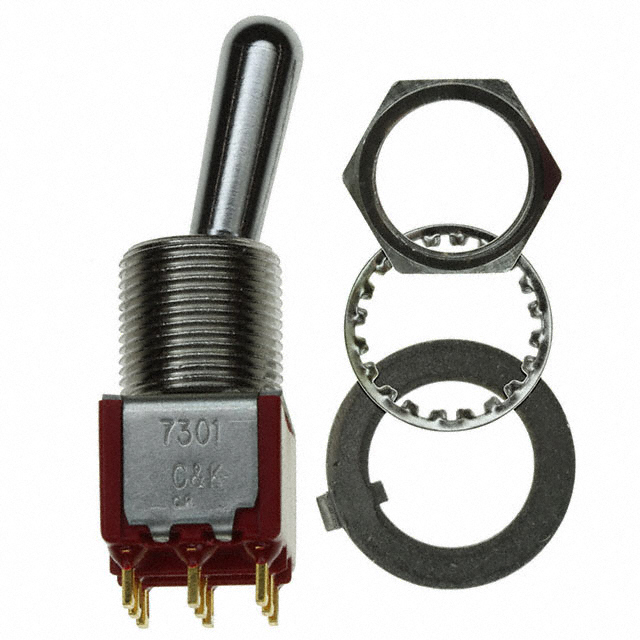

Image may be representation. See specifications for product details.

Product Overview

Part Number:	7301TZGE
Manufacturer/Brand:	C&K
Product description	SWITCH TOGGLE 3PDT 5A 120V
Datasheets:	7301TZGE.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	5747 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 5747 pcs

Reference Price (In US Dollars)

1 pcs: $5.942

10 pcs: $5.621

25 pcs: $5.461

50 pcs: $5.30

100 pcs: $5.139

250 pcs: $4.979

500 pcs: $4.176

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$5.942

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 7301TZGE

Part Number	7301TZGE	Manufacturer	C&K
Description	SWITCH TOGGLE 3PDT 5A 120V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5747 pcs	Data sheet	7301TZGE.pdf
Voltage Rating - DC	28V	Voltage Rating - AC	120V
Termination Style	Solder Lug	Switch Function	On-On
Series	7000	Panel Cutout Dimensions	Circular - 11.91mm Dia
Packaging	Bulk	Other Names	*7301TZGE CKN9796
Operating Temperature	-30°C ~ 85°C	Mounting Type	Panel Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	11 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Illumination	Non-Illuminated	Features	Epoxy Sealed Terminals
Electrical Life	100,000 Cycles	Detailed Description	Toggle Switch 3PDT Panel Mount
Current Rating	5A (AC/DC)	Circuit	3PDT
Bushing Thread	15/32-32	Actuator Type	Standard Round
Actuator Material	Brass, Chrome Plated	Actuator Length	17.45mm
