23TL402

C&K

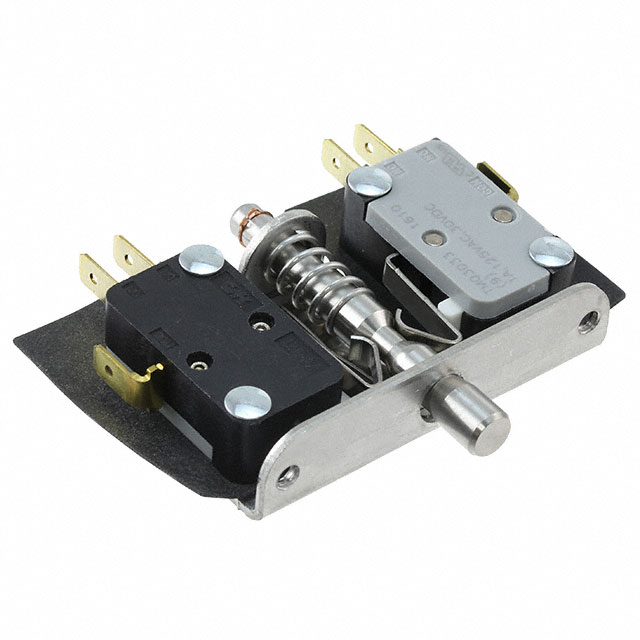

Image may be representation. See specifications for product details.

Product Overview

Part Number:	23TL402
Manufacturer/Brand:	C&K
Product description	SWITCH SNAP ACT SPDTX2 15A 125V
Datasheets:	23TL402.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	2857 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 2857 pcs

Reference Price (In US Dollars)

1 pcs: $12.506

10 pcs: $9.38

25 pcs: $8.598

50 pcs: $8.077

100 pcs: $7.556

250 pcs: $7.296

500 pcs: $7.035

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$12.506

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 23TL402

Part Number	23TL402	Manufacturer	C&K
Description	SWITCH SNAP ACT SPDTX2 15A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	2857 pcs	Data sheet	23TL402.pdf
Voltage Rating - DC	125V	Voltage Rating - AC	125V
Termination Style	Quick Connect - 0.187" (4.7mm)	Switch Function	On-Mom
Series	TL	Release Force	-
Pretravel	-	Packaging	Bulk
Overtravel	-	Other Names	*23TL402 23TL402-ND CKN10604 Q2910211 Q3030104
Operating Temperature	-55°C ~ 150°C	Operating Position	-
Operating Force	-	Mounting Type	Chassis Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	-
Manufacturer Standard Lead Time	11 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Features	-
Electrical Life	150,000 Cycles	Differential Travel	-
Current Rating	15A (AC), 500mA (DC)	Circuit	SPDT x 2
Actuator Type	Push-Pull Plunger
