HC7-2R2-R

Bussmann (Eaton)

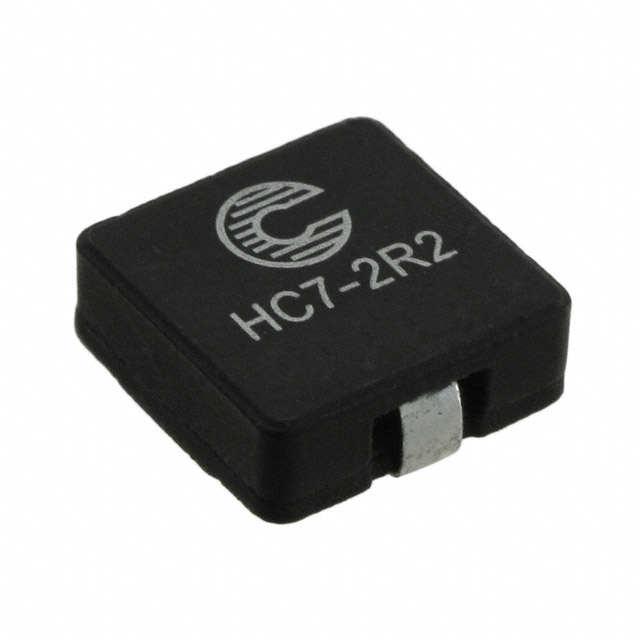

Image may be representation. See specifications for product details.

Product Overview

Part Number:	HC7-2R2-R
Manufacturer/Brand:	Bussmann (Eaton)
Product description	FIXED IND 2.2UH 13A 5.2 MOHM SMD
Datasheets:	HC7-2R2-R.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	16003 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 16003 pcs

Reference Price (In US Dollars)

1 pcs: $2.102

10 pcs: $1.911

100 pcs: $1.299

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.102

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of HC7-2R2-R

Part Number	HC7-2R2-R	Manufacturer	Bussmann (Eaton)
Description	FIXED IND 2.2UH 13A 5.2 MOHM SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	16003 pcs	Data sheet	HC7-2R2-R.pdf
Type	Wirewound	Tolerance	±20%
Supplier Device Package	-	Size / Dimension	0.543" L x 0.512" W (13.80mm x 13.00mm)
Shielding	Unshielded	Series	HC7
Ratings	-	Q @ Freq	-
Packaging	Original-Reel®	Package / Case	Nonstandard
Other Names	513-1166-6	Operating Temperature	-40°C ~ 155°C
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material - Core	Iron Powder	Manufacturer Standard Lead Time	14 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance Frequency - Test	100kHz
Inductance	2.2µH	Height - Seated (Max)	0.217" (5.50mm)
Frequency - Self Resonant	-	Detailed Description	2.2µH Unshielded Wirewound Inductor 13A 5.2 mOhm Max Nonstandard
DC Resistance (DCR)	5.2 mOhm Max	Current Rating	13A
Current - Saturation	23.6A
