Bussmann (Eaton)

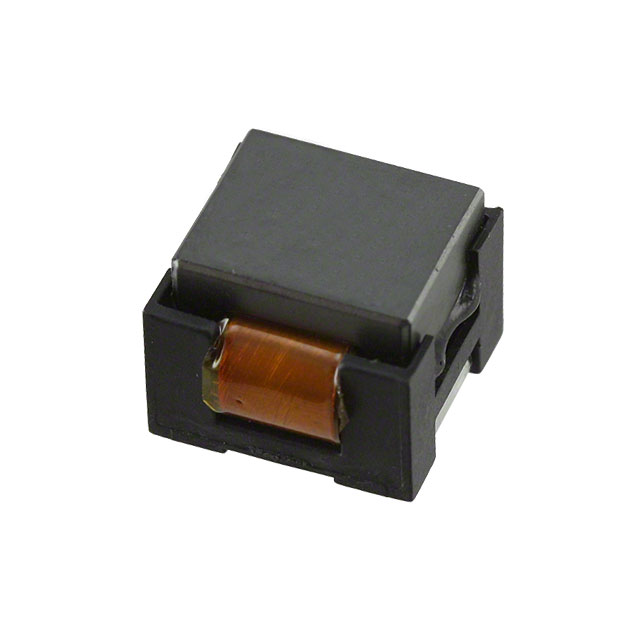

| Part Number | HC1-2R3-R | Manufacturer | Bussmann (Eaton) |
|---|---|---|---|
| Description | FIXED IND 2.3UH 22.3A 2 MOHM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 44387 pcs | Data sheet | HC1-2R3-R.pdf |
| Type | Wirewound | Tolerance | ±15% |
| Supplier Device Package | - | Size / Dimension | 0.512" L x 0.512" W (13.00mm x 13.00mm) |
| Shielding | Unshielded | Series | HC1 |
| Ratings | - | Q @ Freq | - |
| Packaging | Tape & Reel (TR) | Package / Case | Nonstandard |
| Other Names | 513-1156-2 HC1-2R3 HC1-2R3-ND HC12R3R |
Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Core | Ferrite | Manufacturer Standard Lead Time | 13 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance Frequency - Test | 300kHz |
| Inductance | 2.3µH | Height - Seated (Max) | 0.394" (10.00mm) |
| Frequency - Self Resonant | - | Detailed Description | 2.3µH Unshielded Wirewound Inductor 22.3A 2 mOhm Max Nonstandard |
| DC Resistance (DCR) | 2 mOhm Max | Current Rating | 22.3A |
| Current - Saturation | 16.7A |
