DRAQ127-470-R

Bussmann (Eaton)

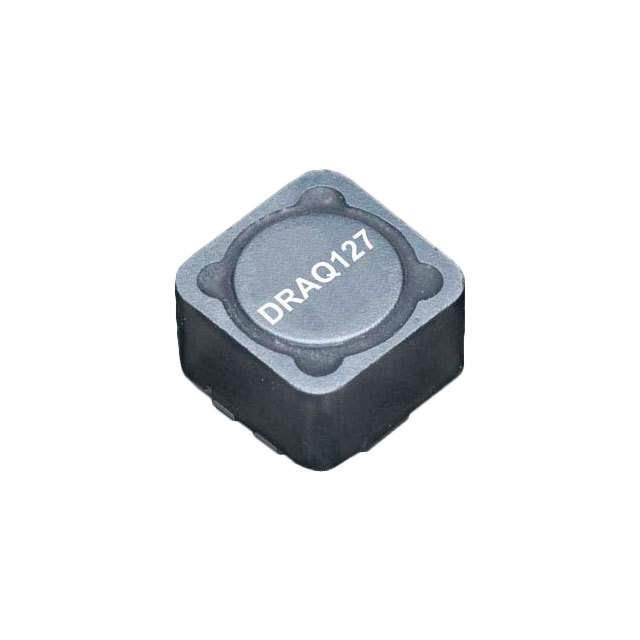

Image may be representation. See specifications for product details.

Product Overview

Part Number:	DRAQ127-470-R
Manufacturer/Brand:	Bussmann (Eaton)
Product description	INDUCT ARRAY 2 COIL 47.9UH SMD
Datasheets:	DRAQ127-470-R.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	54365 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 54365 pcs

Reference Price (In US Dollars)

1 pcs: $0.596

10 pcs: $0.553

100 pcs: $0.40

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.596

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of DRAQ127-470-R

Part Number	DRAQ127-470-R	Manufacturer	Bussmann (Eaton)
Description	INDUCT ARRAY 2 COIL 47.9UH SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	54365 pcs	Data sheet	DRAQ127-470-R.pdf
Tolerance	±25%	Size / Dimension	0.480" L x 0.480" W (12.20mm x 12.20mm)
Shielding	Shielded	Series	DRAQ127
Ratings	AEC-Q200	Packaging	Cut Tape (CT)
Package / Case	Nonstandard	Other Names	283-4518-1
Operating Temperature	-40°C ~ 165°C	Number of Coils	2
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	21 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Inductance - Connected In Series	192µH	Inductance - Connected In Parallel	47.9µH
Height	0.315" (8.00mm)	Detailed Description	Shielded 2 Coil Inductor Array 192µH Inductance - Connected in Series 47.9µH Inductance - Connected in Parallel 110 mOhm Max DC Resistance (DCR) - Parallel 2.62A Nonstandard
DC Resistance (DCR) - Series	440 mOhm Max	DC Resistance (DCR) - Parallel	110 mOhm Max
Current Saturation - Series	2.03A	Current Saturation - Parallel	4.07A
Current Rating - Series	1.31A	Current Rating - Parallel	2.62A
