CTX8-2-R

Bussmann (Eaton)

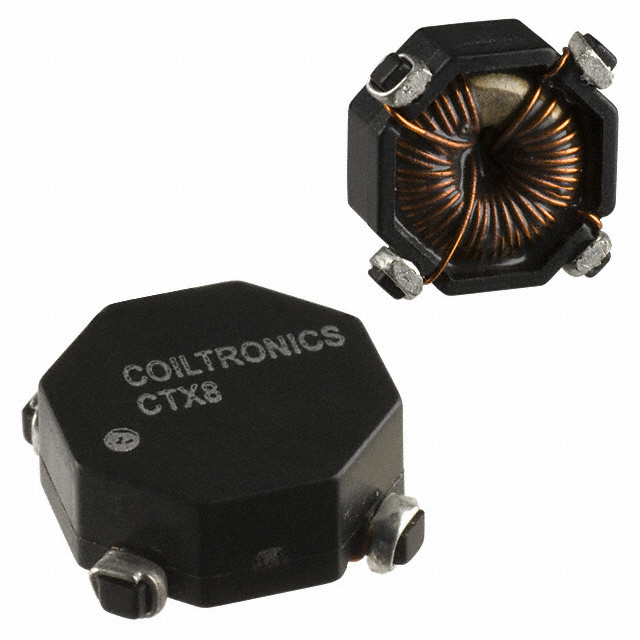

Image may be representation. See specifications for product details.

Product Overview

Part Number:	CTX8-2-R
Manufacturer/Brand:	Bussmann (Eaton)
Product description	INDUCT ARRAY 2 COIL 7.94UH SMD
Datasheets:	CTX8-2-R.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	39914 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 39914 pcs

Reference Price (In US Dollars)

800 pcs: $0.992

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.992

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of CTX8-2-R

Part Number	CTX8-2-R	Manufacturer	Bussmann (Eaton)
Description	INDUCT ARRAY 2 COIL 7.94UH SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	39914 pcs	Data sheet	CTX8-2-R.pdf
Tolerance	±20%	Size / Dimension	0.450" L x 0.450" W (11.43mm x 11.43mm)
Shielding	Unshielded	Series	OCTA-PAC®
Ratings	-	Packaging	Tape & Reel (TR)
Package / Case	Nonstandard	Other Names	CTX8-2 CTX8-2-ND
Operating Temperature	-40°C ~ 85°C	Number of Coils	2
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	14 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Inductance - Connected In Series	31.77µH	Inductance - Connected In Parallel	7.94µH
Height	0.235" (5.97mm)	Detailed Description	Unshielded 2 Coil Inductor Array 31.77µH Inductance - Connected in Series 7.94µH Inductance - Connected in Parallel 27 mOhm Max DC Resistance (DCR) - Parallel 2.6A Nonstandard
DC Resistance (DCR) - Series	108 mOhm Max	DC Resistance (DCR) - Parallel	27 mOhm Max
Current Rating - Series	1.3A	Current Rating - Parallel	2.6A
