CTX50-4-R

Bussmann (Eaton)

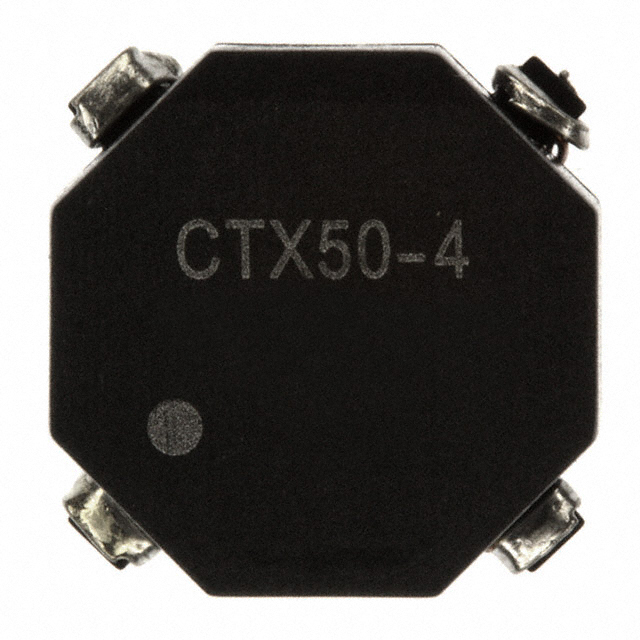

Image may be representation. See specifications for product details.

Product Overview

Part Number:	CTX50-4-R
Manufacturer/Brand:	Bussmann (Eaton)
Product description	INDUCT ARRAY 2 COIL 50.18UH SMD
Datasheets:	CTX50-4-R.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	13644 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 13644 pcs

Reference Price (In US Dollars)

1 pcs: $2.363

10 pcs: $2.148

100 pcs: $1.46

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.363

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of CTX50-4-R

Part Number	CTX50-4-R	Manufacturer	Bussmann (Eaton)
Description	INDUCT ARRAY 2 COIL 50.18UH SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	13644 pcs	Data sheet	CTX50-4-R.pdf
Tolerance	±20%	Size / Dimension	0.550" L x 0.550" W (13.97mm x 13.97mm)
Shielding	Unshielded	Series	OCTA-PAC®
Ratings	-	Packaging	Cut Tape (CT)
Package / Case	Nonstandard	Other Names	513-1014-1
Operating Temperature	-40°C ~ 85°C	Number of Coils	2
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	13 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Inductance - Connected In Series	200.7µH	Inductance - Connected In Parallel	50.18µH
Height	0.250" (6.35mm)	Detailed Description	Unshielded 2 Coil Inductor Array 200.7µH Inductance - Connected in Series 50.18µH Inductance - Connected in Parallel 111 mOhm Max DC Resistance (DCR) - Parallel 1.5A Nonstandard
DC Resistance (DCR) - Series	443 mOhm Max	DC Resistance (DCR) - Parallel	111 mOhm Max
Current Rating - Series	750mA	Current Rating - Parallel	1.5A
