CTX25-4A-R

Bussmann (Eaton)

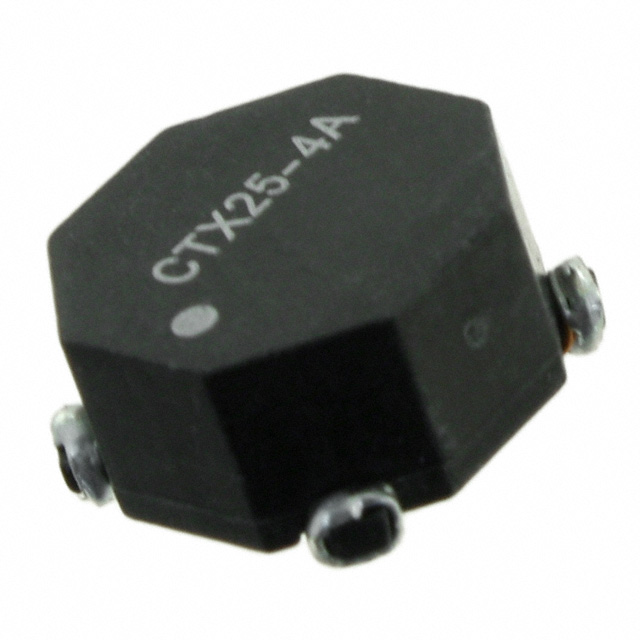

Image may be representation. See specifications for product details.

Product Overview

Part Number:	CTX25-4A-R
Manufacturer/Brand:	Bussmann (Eaton)
Product description	INDUCT ARRAY 2 COIL 25.14UH SMD
Datasheets:	CTX25-4A-R.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	32752 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 32752 pcs

Reference Price (In US Dollars)

600 pcs: $1.059

1200 pcs: $0.993

3000 pcs: $0.96

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.059

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of CTX25-4A-R

Part Number	CTX25-4A-R	Manufacturer	Bussmann (Eaton)
Description	INDUCT ARRAY 2 COIL 25.14UH SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	32752 pcs	Data sheet	CTX25-4A-R.pdf
Tolerance	±25%	Size / Dimension	0.550" L x 0.550" W (13.97mm x 13.97mm)
Shielding	Unshielded	Series	OCTA-PAC® PLUS
Ratings	-	Packaging	Tape & Reel (TR)
Package / Case	Nonstandard	Other Names	513-1810-2 CTX25-4A CTX25-4A-ND CTX25-4A-R-ND CTX254AR
Operating Temperature	-40°C ~ 85°C	Number of Coils	2
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	14 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Inductance - Connected In Series	100.51µH	Inductance - Connected In Parallel	25.14µH
Height	0.250" (6.35mm)	Detailed Description	Unshielded 2 Coil Inductor Array 100.51µH Inductance - Connected in Series 25.14µH Inductance - Connected in Parallel 48 mOhm Max DC Resistance (DCR) - Parallel 3.02A Nonstandard
DC Resistance (DCR) - Series	193 mOhm Max	DC Resistance (DCR) - Parallel	48 mOhm Max
Current Saturation - Series	1.32A	Current Saturation - Parallel	2.65A
Current Rating - Series	1.51A	Current Rating - Parallel	3.02A
