Bussmann (Eaton)
| Part Number | CTX15-1-R | Manufacturer | Bussmann (Eaton) |
|---|---|---|---|
| Description | INDUCT ARRAY 2 COIL 14.4UH SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 32438 pcs | Data sheet | CTX15-1-R.pdf |
| Tolerance | ±20% | Size / Dimension | 0.450" L x 0.450" W (11.43mm x 11.43mm) |
| Shielding | Unshielded | Series | OCTA-PAC® |
| Ratings | - | Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard | Other Names | 283-4354-2 CTX15-1 CTX15-1-ND CTX15-1-R-ND |
| Operating Temperature | -40°C ~ 85°C | Number of Coils | 2 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |

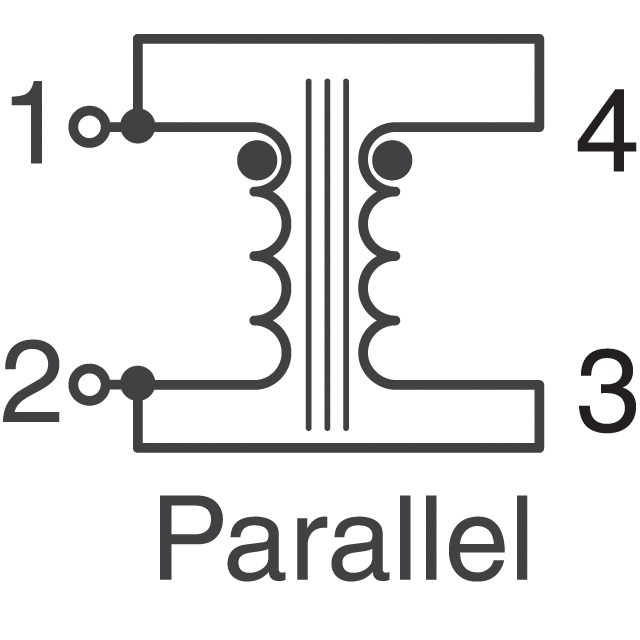

| Inductance - Connected In Series | 57.6µH | Inductance - Connected In Parallel | 14.4µH |
| Height | 0.165" (4.19mm) | Detailed Description | Unshielded 2 Coil Inductor Array 57.6µH Inductance - Connected in Series 14.4µH Inductance - Connected in Parallel 80 mOhm Max DC Resistance (DCR) - Parallel 1.1A Nonstandard |
| DC Resistance (DCR) - Series | 319 mOhm Max | DC Resistance (DCR) - Parallel | 80 mOhm Max |
| Current Rating - Series | 550mA | Current Rating - Parallel | 1.1A |
