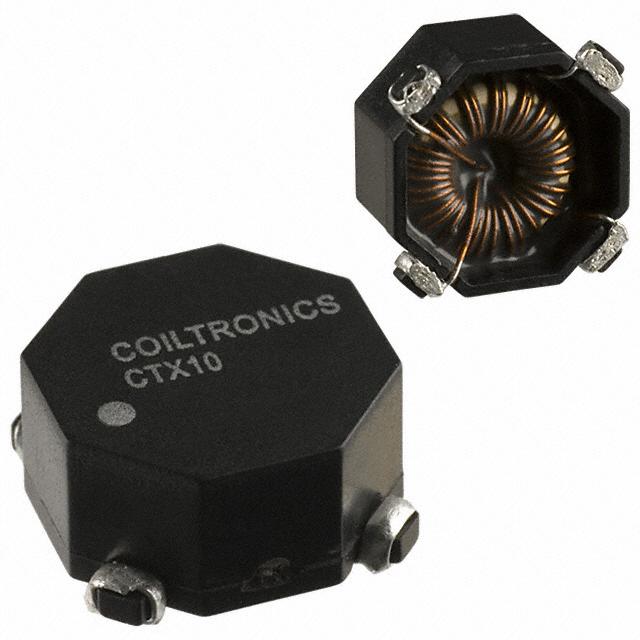

Bussmann (Eaton)
| Part Number | CTX10-3A-R | Manufacturer | Bussmann (Eaton) |
|---|---|---|---|
| Description | INDUCT ARRAY 2 COIL 9.68UH SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3489 pcs | Data sheet | CTX10-3A-R.pdf |
| Tolerance | ±25% | Size / Dimension | 0.550" L x 0.550" W (13.97mm x 13.97mm) |
| Shielding | Unshielded | Series | OCTA-PAC® PLUS |
| Ratings | - | Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard | Other Names | CTX10-3A CTX10-3A-ND |
| Operating Temperature | -40°C ~ 85°C | Number of Coils | 2 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance - Connected In Series | 38.7µH |
| Inductance - Connected In Parallel | 9.68µH | Height | 0.190" (4.83mm) |
| Detailed Description | Unshielded 2 Coil Inductor Array 38.7µH Inductance - Connected in Series 9.68µH Inductance - Connected in Parallel 32 mOhm Max DC Resistance (DCR) - Parallel 3.64A Nonstandard | DC Resistance (DCR) - Series | 126 mOhm Max |
| DC Resistance (DCR) - Parallel | 32 mOhm Max | Current Saturation - Series | 1.5A |
| Current Saturation - Parallel | 3A | Current Rating - Series | 1.82A |
| Current Rating - Parallel | 3.64A |
