Bourns, Inc.

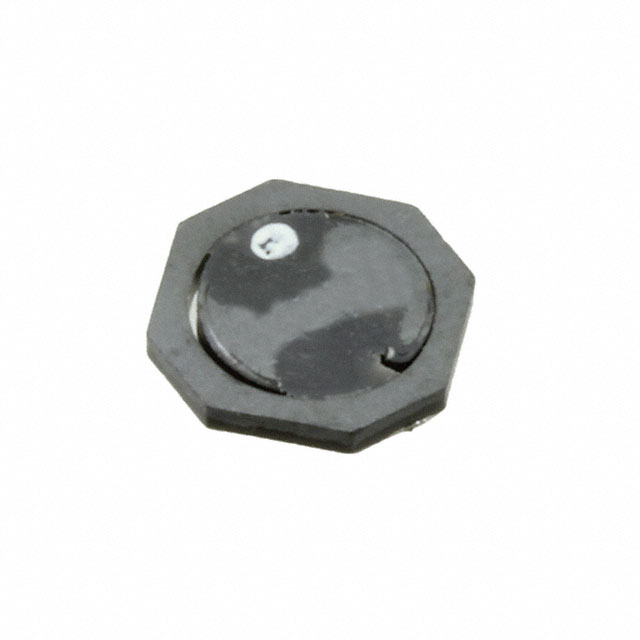

| Part Number | SRU6011-220Y | Manufacturer | Bourns, Inc. |
|---|---|---|---|
| Description | FIXED IND 22UH 800MA 390 MOHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 281396 pcs | Data sheet | SRU6011-220Y.pdf |
| Type | Wirewound | Tolerance | ±30% |
| Supplier Device Package | - | Size / Dimension | 0.256" L x 0.244" W (6.50mm x 6.20mm) |
| Shielding | Shielded | Series | SRU6011 |
| Ratings | - | Q @ Freq | 10 @ 2.52MHz |
| Packaging | Tape & Reel (TR) | Package / Case | Nonstandard |
| Other Names | SRU6011-220Y-ND SRU6011-220YTR SRU6011220Y |
Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Core | Ferrite | Manufacturer Standard Lead Time | 18 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance Frequency - Test | 100kHz |
| Inductance | 22µH | Height - Seated (Max) | 0.049" (1.25mm) |
| Frequency - Self Resonant | 26MHz | Detailed Description | 22µH Shielded Wirewound Inductor 800mA 390 mOhm Max Nonstandard |
| DC Resistance (DCR) | 390 mOhm Max | Current Rating | 800mA |
| Current - Saturation | 480mA |
