SDR0503-822JL

Bourns, Inc.

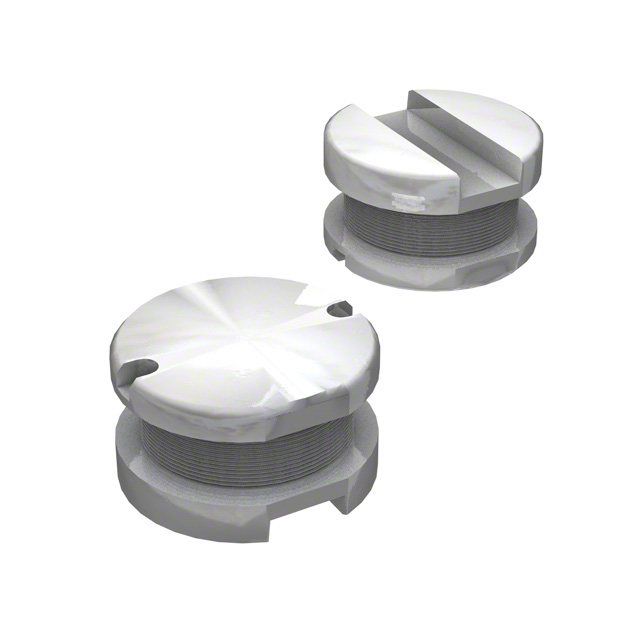

Image may be representation. See specifications for product details.

Product Overview

Part Number:	SDR0503-822JL
Manufacturer/Brand:	Bourns, Inc.
Product description	FIXED IND 8.2MH 30MA 92 OHM SMD
Datasheets:	SDR0503-822JL.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	146562 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 146562 pcs

Reference Price (In US Dollars)

1 pcs: $0.22

10 pcs: $0.193

100 pcs: $0.138

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.22

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of SDR0503-822JL

Part Number	SDR0503-822JL	Manufacturer	Bourns, Inc.
Description	FIXED IND 8.2MH 30MA 92 OHM SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	146562 pcs	Data sheet	SDR0503-822JL.pdf
Type	Wirewound	Tolerance	±5%
Supplier Device Package	-	Size / Dimension	0.197" L x 0.189" W (5.00mm x 4.80mm)
Shielding	Unshielded	Series	SDR0503
Ratings	-	Q @ Freq	40 @ 252kHz
Packaging	Cut Tape (CT)	Package / Case	Nonstandard
Other Names	SDR0503-822JLCT	Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material - Core	Ferrite	Manufacturer Standard Lead Time	16 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance Frequency - Test	1kHz
Inductance	8.2mH	Height - Seated (Max)	0.130" (3.30mm)
Frequency - Self Resonant	1MHz	Detailed Description	8.2mH Unshielded Wirewound Inductor 30mA 92 Ohm Max Nonstandard
DC Resistance (DCR)	92 Ohm Max	Current Rating	30mA
Current - Saturation	45mA
