PM13560S-100M-RC

Bourns, Inc.

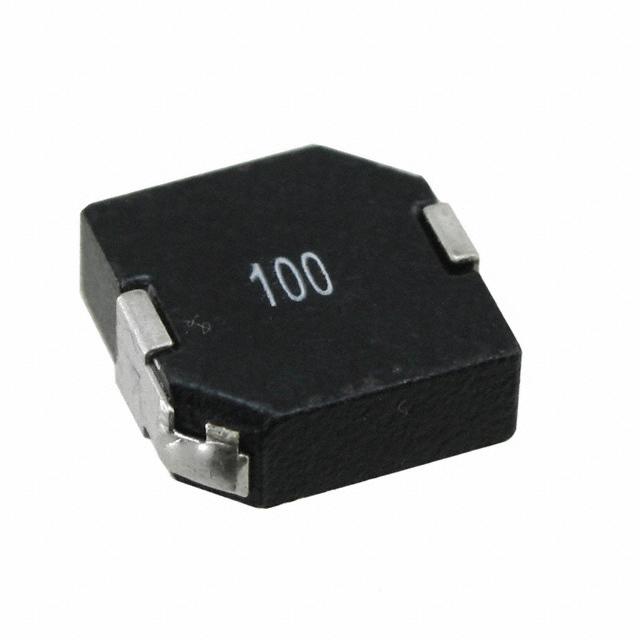

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PM13560S-100M-RC
Manufacturer/Brand:	Bourns, Inc.
Product description	FIXED IND 10UH 9A 25.5 MOHM SMD
Datasheets:	PM13560S-100M-RC.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	31511 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 31511 pcs

Reference Price (In US Dollars)

1 pcs: $0.936

10 pcs: $0.864

100 pcs: $0.605

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.936

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PM13560S-100M-RC

Part Number	PM13560S-100M-RC	Manufacturer	Bourns, Inc.
Description	FIXED IND 10UH 9A 25.5 MOHM SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	31511 pcs	Data sheet	PM13560S-100M-RC.pdf
Type	Wirewound	Tolerance	±20%
Supplier Device Package	-	Size / Dimension	0.547" L x 0.531" W (13.90mm x 13.50mm)
Shielding	Shielded	Series	PM13560S
Ratings	-	Q @ Freq	-
Packaging	Original-Reel®	Package / Case	Nonstandard
Other Names	M8502DKR	Operating Temperature	-55°C ~ 150°C
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material - Core	Iron	Manufacturer Standard Lead Time	26 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance Frequency - Test	100kHz
Inductance	10µH	Height - Seated (Max)	0.232" (5.90mm)
Frequency - Self Resonant	-	Detailed Description	10µH Shielded Wirewound Inductor 9A 25.5 mOhm Max Nonstandard
DC Resistance (DCR)	25.5 mOhm Max	Current Rating	9A
Current - Saturation	16A
