CDDFN6-0504P

Bourns, Inc.Bourns, Inc.

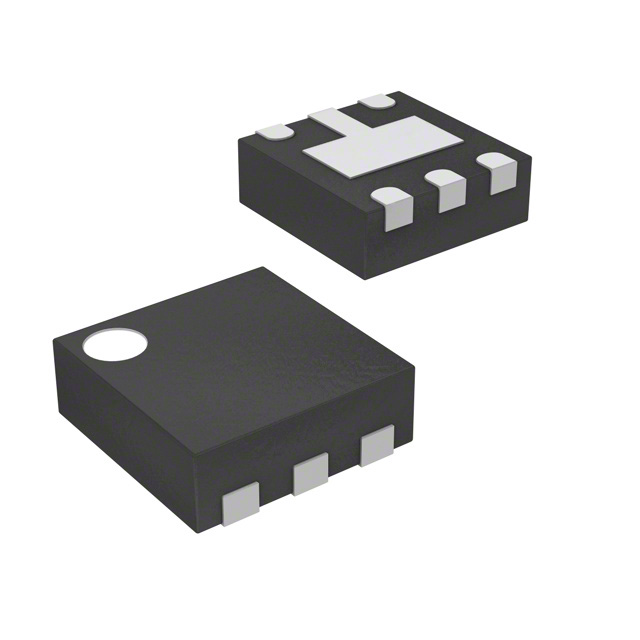

CDDFN6-0504P Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: CDDFN6-0504P
Manufacturer/Brand: Bourns, Inc.
Product description TVS DIODE 5V 12.5V 6DFN
Datasheets: CDDFN6-0504P.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 336909 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 336909 pcs
Reference Price (In US Dollars)
3000 pcs
$0.115
6000 pcs
$0.108
15000 pcs
$0.106
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$0.115

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of CDDFN6-0504P

Part Number CDDFN6-0504P Manufacturer Bourns, Inc.
Description TVS DIODE 5V 12.5V 6DFN Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 336909 pcs Data sheet CDDFN6-0504P.pdf
Voltage - Reverse Standoff (Typ) 5V Voltage - Clamping (Max) @ Ipp 12.5V
Voltage - Breakdown (Min) 6V Unidirectional Channels 4
Type Steering (Rail to Rail) Supplier Device Package 6-DFN (1.6x1.6)
Series - Power Line Protection Yes
Power - Peak Pulse 150W Packaging Tape & Reel (TR)
Package / Case 6-PowerUFDFN Other Names CDDFN6-0504P-ND
CDDFN6-0504PTR
CDDFN60504P
Operating Temperature -55°C ~ 125°C (TA) Mounting Type Surface Mount
Moisture Sensitivity Level (MSL) 3 (168 Hours) Manufacturer Standard Lead Time 16 Weeks
Lead Free Status / RoHS Status Lead free / RoHS Compliant Current - Peak Pulse (10/1000µs) 6.5A (8/20µs)
Capacitance @ Frequency - Applications Ethernet
