AMS22U5A1BHARL1BB

Bourns, Inc.

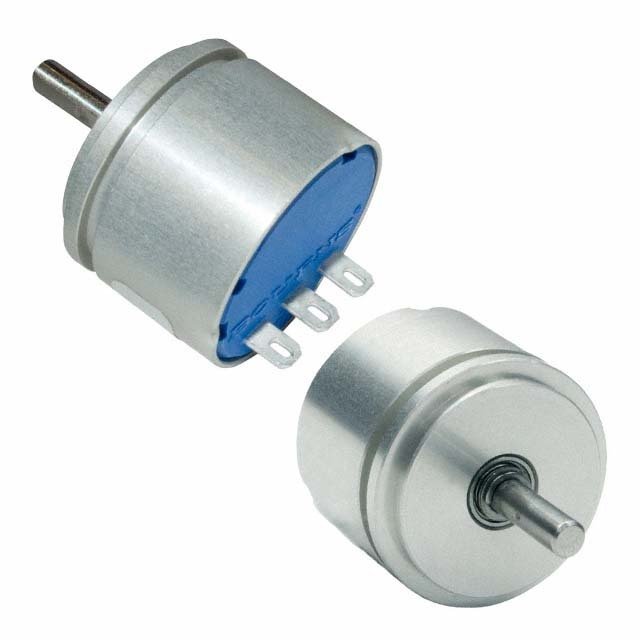

Image may be representation. See specifications for product details.

Product Overview

Part Number:	AMS22U5A1BHARL1BB
Manufacturer/Brand:	Bourns, Inc.
Product description	SENSOR ROTARY 45DEG SOLDER LUG
Datasheets:	AMS22U5A1BHARL1BB.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	1842 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 1842 pcs

Reference Price (In US Dollars)

1 pcs: $20.229

5 pcs: $19.218

10 pcs: $17.701

25 pcs: $15.678

50 pcs: $15.172

100 pcs: $14.666

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$20.229

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of AMS22U5A1BHARL1BB

Part Number	AMS22U5A1BHARL1BB	Manufacturer	Bourns, Inc.
Description	SENSOR ROTARY 45DEG SOLDER LUG	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1842 pcs	Data sheet	AMS22U5A1BHARL1BB.pdf
Voltage - Supply	5V	Termination Style	Solder Lug
Technology	Hall Effect	Supplier Device Package	-
Series	AMS22U	Rotation Angle - Electrical, Mechanical	10° ~ 45°, Continuous
Resistance Tolerance	-	Packaging	Bulk
Package / Case	Module, Round Shaft	Output Signal	Counterclockwise Increase
Output	Analog Voltage	Operating Temperature	-40°C ~ 125°C
Mounting Type	Panel Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Linearity	±0.5%	Linear Range	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	For Measuring	Rotary Position
Detailed Description	Hall Effect Sensor Rotary Position Round Shaft Solder Lug	Actuator Type	Round Shaft
