AMS22B5A1BHASL1BBN

Bourns, Inc.Bourns, Inc.

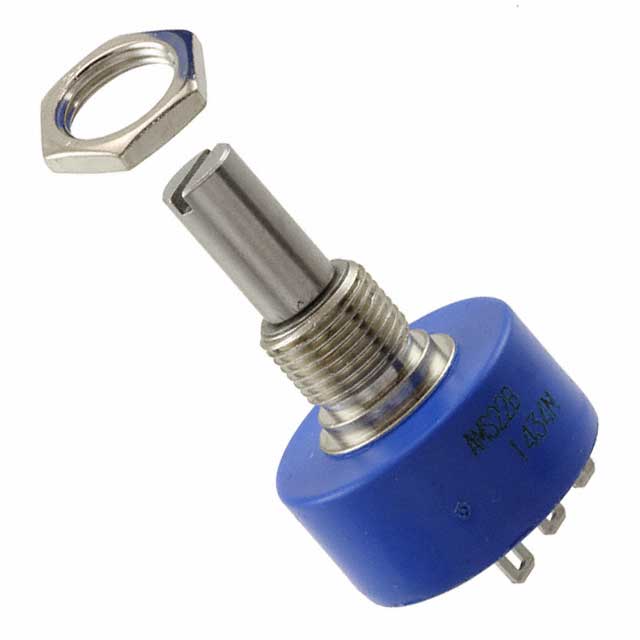

AMS22B5A1BHASL1BBN Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: AMS22B5A1BHASL1BBN
Manufacturer/Brand: Bourns, Inc.
Product description SENSOR ROTARY 45DEG SOLDER LUG
Datasheets:
RoHs Status Lead free / RoHS Compliant
Stock Condition 2381 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
Download Product Details PDF
In Stock 2381 pcs
Reference Price (In US Dollars)
1 pcs
$14.305
5 pcs
$13.655
10 pcs
$12.354
25 pcs
$11.379
50 pcs
$10.079
100 pcs
$9.753
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:
  • Qty:
Total:$14.305

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of AMS22B5A1BHASL1BBN

Part Number AMS22B5A1BHASL1BBN Manufacturer Bourns, Inc.
Description SENSOR ROTARY 45DEG SOLDER LUG Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 2381 pcs Data sheet
Voltage - Supply 5V Termination Style Solder Lug
Technology Hall Effect Supplier Device Package -
Series AMS22B Rotation Angle - Electrical, Mechanical 10° ~ 45°, Continuous
Resistance Tolerance - Packaging Bulk
Package / Case Module, Slotted Shaft Output Signal Counterclockwise Increase
Output Analog Voltage Operating Temperature -40°C ~ 125°C
Mounting Type Panel Mount Moisture Sensitivity Level (MSL) 1 (Unlimited)
Linearity ±0.5% Linear Range -
Lead Free Status / RoHS Status Lead free / RoHS Compliant For Measuring Rotary Position
Detailed Description Hall Effect Sensor Rotary Position Slotted Shaft Solder Lug Actuator Type Slotted Shaft
