8114

Bourns, Inc.

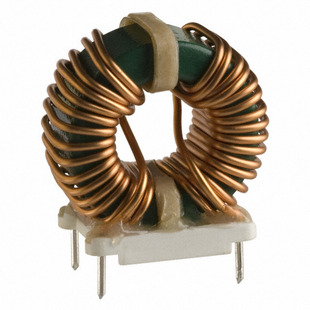

Image may be representation. See specifications for product details.

Product Overview

Part Number:	8114
Manufacturer/Brand:	Bourns, Inc.
Product description	CMC 2.5MH 12.5A 2LN TH
Datasheets:	8114.pdf
RoHs Status	Contains lead / RoHS non-compliant
Stock Condition	6602 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 6602 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 8114

Part Number	8114	Manufacturer	Bourns, Inc.
Description	CMC 2.5MH 12.5A 2LN TH	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	6602 pcs	Data sheet	8114.pdf
Voltage Rating - DC	-	Voltage Rating - AC	-
Size / Dimension	1.450" L x 0.800" W (36.83mm x 20.32mm)	Series	8100
Ratings	-	Packaging	Tray
Package / Case	Vertical, 4 PC Pin	Other Names	M9849
Operating Temperature	-55°C ~ 105°C	Number of Lines	2
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant	Inductance @ Frequency	2.5mH @ 1kHz
Height (Max)	1.500" (38.10mm)	Filter Type	-
Features	-	Detailed Description	2.5mH @ 1kHz 2 Line Common Mode Choke Through Hole 12.5A DCR 11 mOhm
DC Resistance (DCR) (Max)	11 mOhm	Current Rating (Max)	12.5A
Approvals	-
