HomeProductsPotentiometers, Variable ResistorsTrimmer Potentiometers3005P-1-101

3005P-1-101

Bourns, Inc.Bourns, Inc.

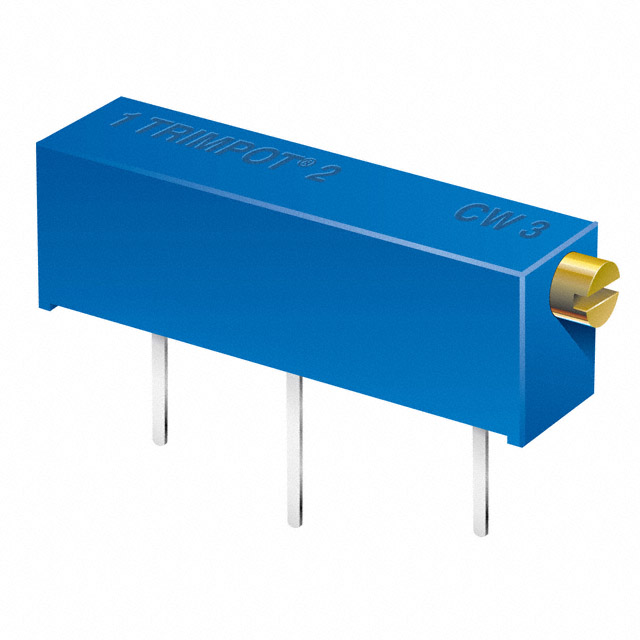

3005P-1-101 Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: 3005P-1-101
Manufacturer/Brand: Bourns, Inc.
Product description TRIMMER 100 OHM 1W PC PIN SIDE
Datasheets: 3005P-1-101.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 3979 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 3979 pcs
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of 3005P-1-101

Part Number 3005P-1-101 Manufacturer Bourns, Inc.
Description TRIMMER 100 OHM 1W PC PIN SIDE Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 3979 pcs Data sheet 3005P-1-101.pdf
Tolerance ±10% Termination Style PC Pins
Temperature Coefficient ±50ppm/°C Size / Dimension Rectangular - 0.310" x 0.160" Face x 0.749" L (7.87mm x 4.06mm x 19.03mm)
Series Trimpot® 3005 - Sealed Resistive Material Wirewound
Resistance 100 Ohms Power (Watts) 1W
Packaging Tube Other Names 3005P-1-101LF
3005P-1-101LF-ND
3005P-101
Number of Turns 20 Mounting Type Through Hole
Moisture Sensitivity Level (MSL) 1 (Unlimited) Lead Free Status / RoHS Status Lead free / RoHS Compliant
Detailed Description 100 Ohms 1W PC Pins Through Hole Trimmer Potentiometer Wirewound 20 Turn Side Adjustment Adjustment Type Side Adjustment
