866B509

Bomar (Winchester Electronics)

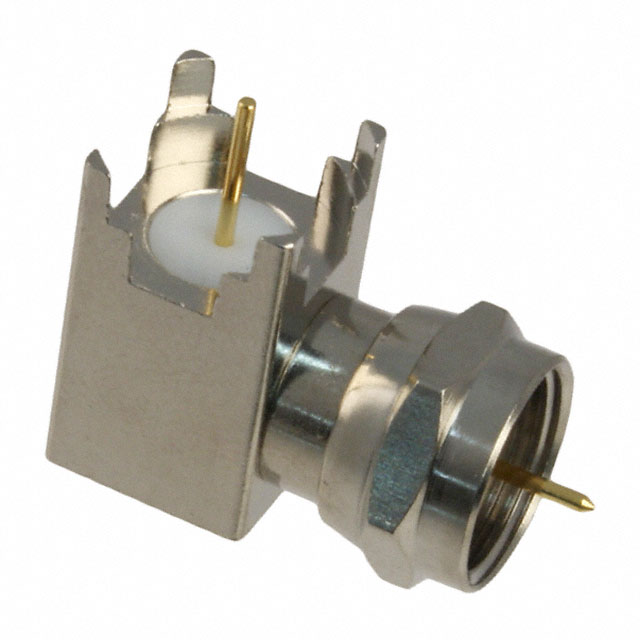

Image may be representation. See specifications for product details.

Product Overview

Part Number:	866B509
Manufacturer/Brand:	Bomar (Winchester Electronics)
Product description	CONN F PLUG R/A NON-CONSTANT PCB
Datasheets:	866B509.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	22761 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 22761 pcs

Reference Price (In US Dollars)

1 pcs: $1.673

10 pcs: $1.604

100 pcs: $1.337

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.673

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 866B509

Part Number	866B509	Manufacturer	Bomar (Winchester Electronics)
Description	CONN F PLUG R/A NON-CONSTANT PCB	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	22761 pcs	Data sheet	866B509.pdf
Voltage Rating	500V	Shield Termination	Solder
Series	Eliminator™	Packaging	Tray
Other Names	991-1053	Operating Temperature	-40°C ~ 65°C
Number of Ports	1	Mounting Type	Through Hole, Right Angle
Mounting Feature	-	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	500	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insertion Loss	-	Ingress Protection	-
Includes	-	Impedance	Non-Constant
Housing Color	Silver	Frequency - Max	500MHz
Features	-	Fastening Type	Threaded
Dielectric Material	Polypropylene (PP)	Detailed Description	F Type Connector Plug, Male Pin Non-Constant Through Hole, Right Angle Solder
Contact Termination	Solder	Connector Type	Plug, Male Pin
Connector Style	F Type	Center Contact Plating	Nickel
Center Contact Material	Brass	Cable Group	-
Body Material	Brass	Body Finish	Nickel
