861V509ER

Bomar (Winchester Electronics)

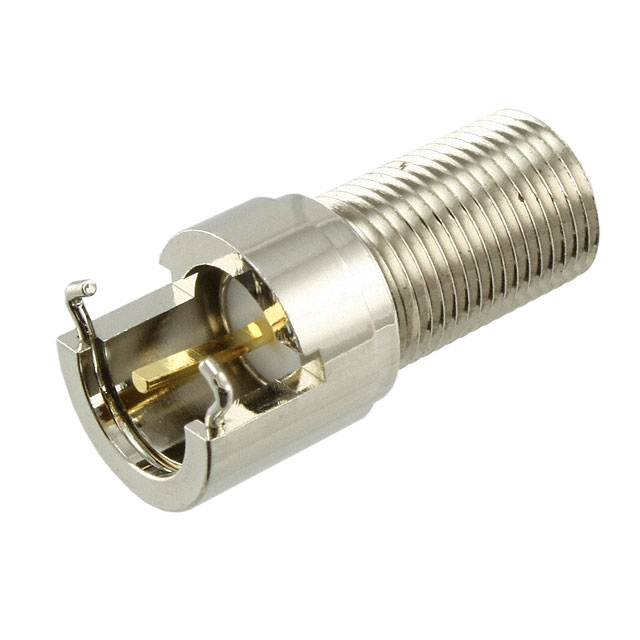

Image may be representation. See specifications for product details.

Product Overview

Part Number:	861V509ER
Manufacturer/Brand:	Bomar (Winchester Electronics)
Product description	CONN F JACK STR EDGE MNT
Datasheets:	861V509ER.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	3082 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 3082 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 861V509ER

Part Number	861V509ER	Manufacturer	Bomar (Winchester Electronics)
Description	CONN F JACK STR EDGE MNT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	3082 pcs	Data sheet	861V509ER.pdf
Voltage Rating	500V	Shield Termination	Solder
Series	V-Bite®	Packaging	Tray
Other Names	991-1043	Operating Temperature	-40°C ~ 65°C
Number of Ports	1	Mounting Type	Board Edge, End Launch
Mounting Feature	-	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	500	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insertion Loss	-	Ingress Protection	-
Includes	-	Impedance	Non-Constant
Housing Color	Silver	Frequency - Max	1GHz
Features	-	Fastening Type	Threaded
Dielectric Material	Polytetrafluoroethylene (PTFE)	Detailed Description	F Type Connector Jack, Female Socket Non-Constant Board Edge, End Launch Solder
Contact Termination	Solder	Connector Type	Jack, Female Socket
Connector Style	F Type	Center Contact Plating	Gold
Center Contact Material	Brass	Cable Group	RG-59
Body Material	Brass	Body Finish	Nickel
