Bel
| Part Number | VB1094-75 | Manufacturer | Bel |
|---|---|---|---|
| Description | CONN BNC JACK STR 75 OHM SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 30442 pcs | Data sheet | VB1094-75.pdf |
| Voltage Rating | 500V | Shield Termination | Solder Tag |
| Series | - | Packaging | Bulk |
| Other Names | 1427-1030 VB109475 |
Operating Temperature | -55°C ~ 85°C |
| Number of Ports | 1 | Mounting Type | Panel Mount |
| Mounting Feature | Bulkhead - Rear Side Nut | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 500 | Manufacturer Standard Lead Time | 6 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Loss | 0.2dB |
| Ingress Protection | - | Includes | 5 pcs - 1 Connector, 1 Lockwasher, 1 Nut, 1 Solder Tag, 1 Washer |
| Impedance | 75 Ohm | Housing Color | Silver |
| Frequency - Max | 1GHz | Features | - |
| Fastening Type | Bayonet Lock | Dielectric Material | Polyoxymethylene (POM) |

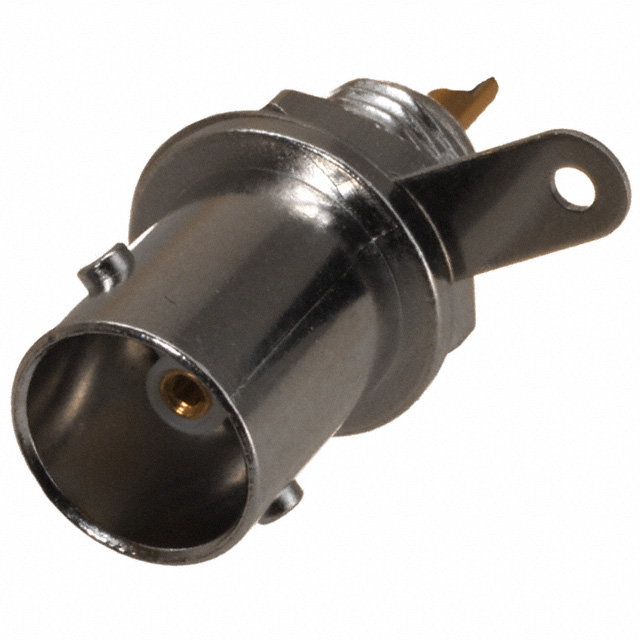

| Detailed Description | BNC Connector Jack, Female Socket 75 Ohm Panel Mount Solder Cup | Contact Termination | Solder Cup |
| Connector Type | Jack, Female Socket | Connector Style | BNC |
| Center Contact Plating | Gold | Center Contact Material | Brass |
| Cable Group | - | Body Material | Zinc |
| Body Finish | Nickel |
