SC5022FH-R47

Bel

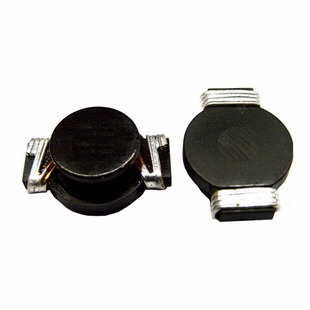

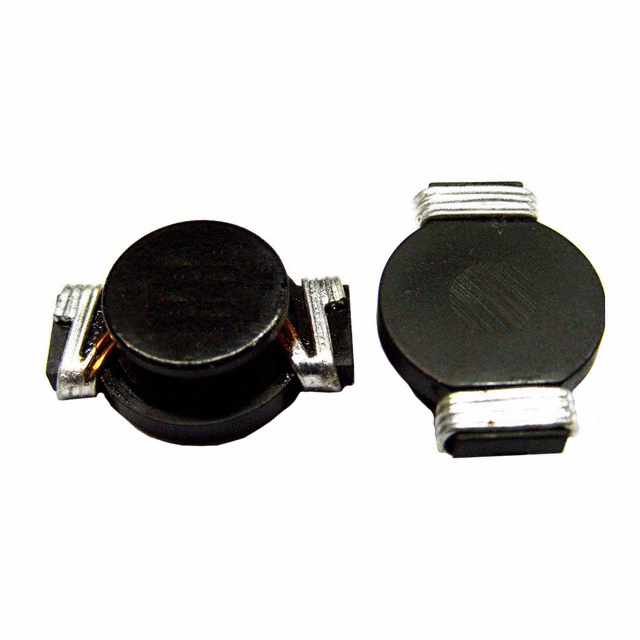

Image may be representation. See specifications for product details.

Product Overview

Part Number:	SC5022FH-R47
Manufacturer/Brand:	Bel
Product description	FIXED IND 470NH 20A 2 MOHM SMD
Datasheets:	SC5022FH-R47.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	102074 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 102074 pcs

Reference Price (In US Dollars)

250 pcs: $0.346

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.346

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of SC5022FH-R47

Part Number	SC5022FH-R47	Manufacturer	Bel
Description	FIXED IND 470NH 20A 2 MOHM SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	102074 pcs	Data sheet	SC5022FH-R47.pdf
Type	Wirewound	Tolerance	±30%
Supplier Device Package	-	Size / Dimension	0.880" L x 0.640" W (22.35mm x 16.26mm)
Shielding	Unshielded	Series	SC5022FH
Ratings	-	Q @ Freq	-
Packaging	Tape & Reel (TR)	Package / Case	Nonstandard
Operating Temperature	-40°C ~ 125°C	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material - Core	-
Manufacturer Standard Lead Time	16 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Inductance Frequency - Test	100kHz	Inductance	470nH
Height - Seated (Max)	0.315" (8.00mm)	Frequency - Self Resonant	-
Detailed Description	470nH Unshielded Wirewound Inductor 20A 2 mOhm Max Nonstandard	DC Resistance (DCR)	2 mOhm Max
Current Rating	20A	Current - Saturation	40A
