PC-28-360

Bel

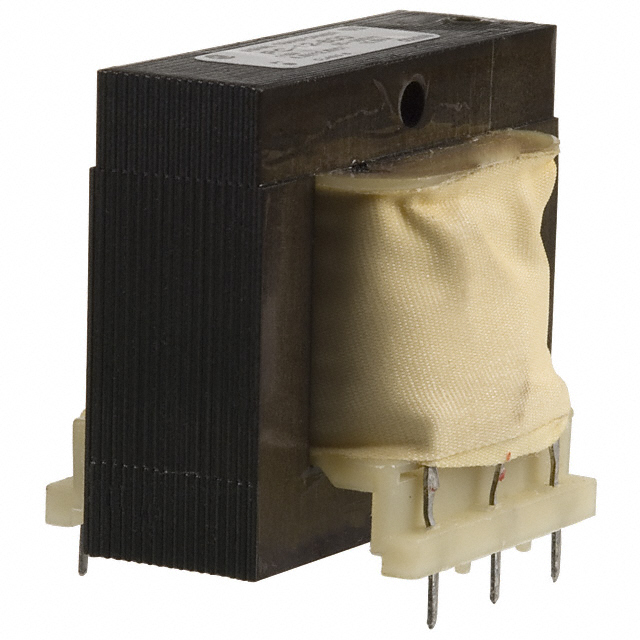

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PC-28-360
Manufacturer/Brand:	Bel
Product description	XFRMR LAMINATED 10VA THRU HOLE
Datasheets:	1.PC-28-360.pdf 2.PC-28-360.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	9297 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 9297 pcs

Reference Price (In US Dollars)

1 pcs: $4.057

10 pcs: $3.108

25 pcs: $2.633

50 pcs: $2.59

100 pcs: $2.46

250 pcs: $2.434

500 pcs: $2.40

1000 pcs: $2.374

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$4.057

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PC-28-360

Part Number	PC-28-360	Manufacturer	Bel
Description	XFRMR LAMINATED 10VA THRU HOLE	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	9297 pcs	Data sheet	1.PC-28-360.pdf 2.PC-28-360.pdf
Weight	0.563 lb (255.37g)	Voltage - Secondary (Full Load)	Parallel 14V, Series 28V
Voltage - Primary	115V	Voltage - Isolation	1500Vrms
Type	Laminated Core	Termination Style	PC Pin
Size / Dimension	47.60mm L x 36.50mm W	Series	PC
Secondary Winding(s)	Dual	Primary Winding(s)	Single
Power - Max	10 VA	Other Names	595-1121 595-1121-ND 595-1745
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	Not Applicable
Manufacturer Standard Lead Time	8 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height - Seated (Max)	41.27mm	Current - Output (Max)	Parallel 720mA, Series 360mA
Center Tap	No
