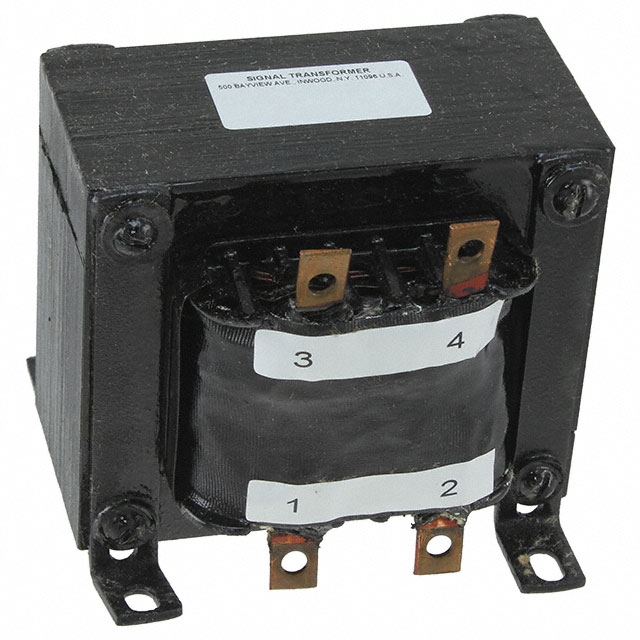

CL-25-50

Bel

Image may be representation. See specifications for product details.

Product Overview

Part Number:	CL-25-50
Manufacturer/Brand:	Bel
Product description	INDUCT ARRAY 2COIL 300UH CHA MNT
Datasheets:	CL-25-50.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	1694 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 1694 pcs

Reference Price (In US Dollars)

1 pcs: $17.766

10 pcs: $17.173

25 pcs: $15.988

50 pcs: $15.752

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$17.766

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of CL-25-50

Part Number	CL-25-50	Manufacturer	Bel
Description	INDUCT ARRAY 2COIL 300UH CHA MNT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1694 pcs	Data sheet	CL-25-50.pdf
Tolerance	-	Size / Dimension	3.870" L x 3.374" W (98.30mm x 85.70mm)
Shielding	Unshielded	Series	CL
Ratings	-	Packaging	Bulk
Package / Case	Nonstandard	Other Names	595-1709 CL-25-50-ND
Operating Temperature	-	Number of Coils	2
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	8 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Inductance - Connected In Series	1.2mH	Inductance - Connected In Parallel	300µH
Height	3.374" (85.70mm)	Detailed Description	Unshielded 2 Coil Inductor Array 1.2mH Inductance - Connected in Series 300µH Inductance - Connected in Parallel 3 mOhm DC Resistance (DCR) - Parallel 50A Nonstandard
DC Resistance (DCR) - Series	12 mOhm	DC Resistance (DCR) - Parallel	3 mOhm
Current Rating - Series	25A	Current Rating - Parallel	50A
