80-1

Bel

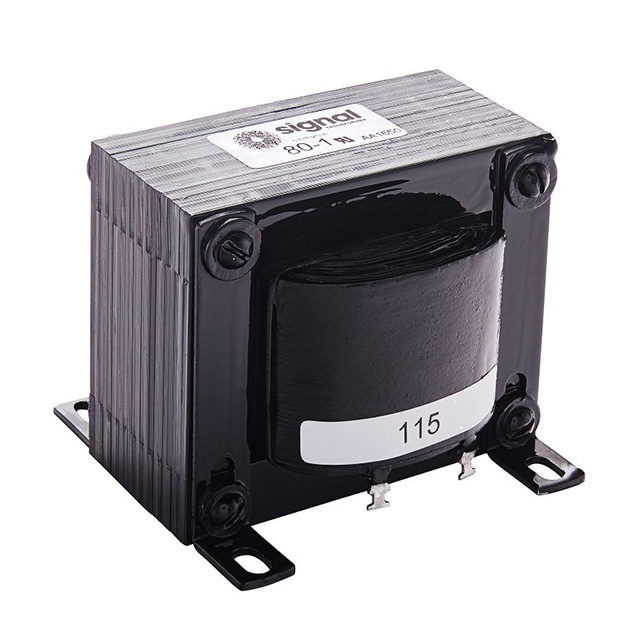

Image may be representation. See specifications for product details.

Product Overview

Part Number:	80-1
Manufacturer/Brand:	Bel
Product description	XFRMR LAMINATED 80VA CHAS MOUNT
Datasheets:	80-1.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	2225 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 2225 pcs

Reference Price (In US Dollars)

1 pcs: $14.265

10 pcs: $12.586

25 pcs: $12.166

50 pcs: $11.159

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$14.265

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 80-1

Part Number	80-1	Manufacturer	Bel
Description	XFRMR LAMINATED 80VA CHAS MOUNT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	2225 pcs	Data sheet	80-1.pdf
Weight	4 lbs (1.8kg)	Voltage - Secondary (Full Load)	Parallel 40V, Series 80V
Voltage - Primary	105V, 115V, 125V, 230V	Voltage - Isolation	1500Vrms
Type	Laminated Core	Termination Style	Solder, Quick Connect
Size / Dimension	85.70mm L x 77.70mm W	Series	-
Secondary Winding(s)	Dual	Primary Winding(s)	Single, Multiple Taps
Power - Max	80 VA	Other Names	595-1858 80ST-1 80ST-1-ND
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	12 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height - Seated (Max)	71.40mm	Current - Output (Max)	Parallel 2A, Series 1A
Center Tap	Yes
